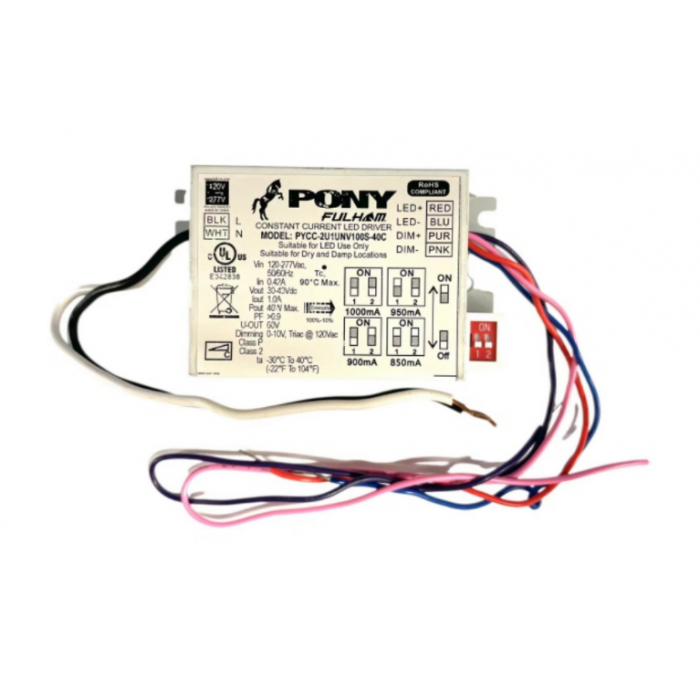

PYCC-2U1UNV100S-40C Fulham Compact PONY Selectable (PYCC) 40W Constant Current LED Driver

Mfg # PYCC-2U1UNV100S-40C Item # 17074

Compact PONY Selectable (PYCC) Constant Current Dimmable LED Driver: 40 Total Watts, 850 / 900 / 950 / 1000 mA Output Current, 40 VDC Output Voltage, 120-277 VAC Input Voltage, Class 2, 0-10v Dimming Control, 10%-100% Dimming Range

$29.94
$25.88

Fulham LED Drivers

PYCC-2U1UNV100S-40C Fulham Compact PONY Selectable (PYCC) 40W Constant Current LED Driver

  • Input Voltage: 120V - 277V, 50/60Hz
  • Dimming Types: 0-10V & Phase@120V
  • Dimming Range: 100% - 10%
  • Class 2 LED Driver
  • cULus Listed, Class P
  • Isolated 0-10V from Input and Output
  • Selectable Output Current: 850 / 900 / 950 / 1000mA
  • Output Voltage: 30-40VDC
Life (hrs) 50,000
Order Code PYCC-2U1UNV100S-40C
Input Volts 120-277 VAC
Output Current 850 / 900 / 950 / 1000 mA
Max Output Voltage 40
Watts 40
Brand Fulham
LED Type Constant Current
Certifications Class P, cULus, IP20, RoHS, Damp Location, Dry Location, FCC Title 47 Part 15 Class A, Class 2 Output, UL cUL CAN/CSA-C22.2 No. 250.13
Class Class 2
Dimmable Yes
Dimming Type 0-10v
Mfg # PYCC-2U1UNV100S-40C
Dimensions 3.4 in. x 1.9 in. x 1.1 in.
Product Data Sheet
Warranty 5 years @ Tc 75°C from the date of manufacture
UPC 10847098050008
