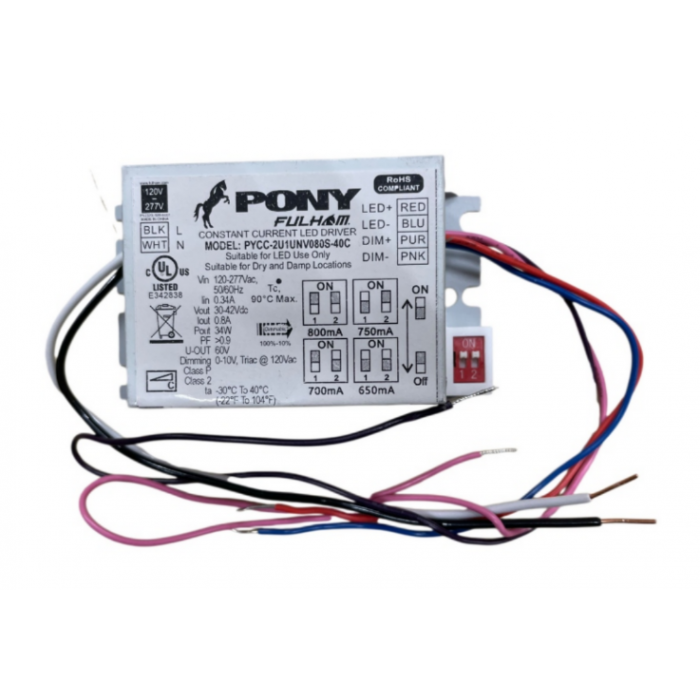

PYCC-2U1UNV080S-40C Fulham Compact PONY Selectable (PYCC) 34W Constant Current LED Driver
Special Price
$19.95
Regular Price
$24.94
SKU
17073
Compact PONY Selectable (PYCC) Constant Current Dimmable LED Driver: 34 Total Watts, 650 / 700 / 750 / 800 mA Output Current, 42 VDC Output Voltage, 120-277 VAC Input Voltage, Class 2, 0-10v Dimming Control, 10%-100% Dimming Range
PYCC-2U1UNV080S-40C Fulham Compact PONY Selectable (PYCC) 34W Constant Current LED Driver
- Input Voltage: 120V - 277V, 50/60Hz
- Dimming Types: 0-10V & Phase@120V
- Dimming Range: 100% - 10%
- Class 2 LED Driver
- cULus Listed, Class P
- Isolated 0-10V from Input and Output
- Selectable Output Current: 650 / 700 / 750 / 800mA
- Output Voltage: 30-42VDC
| Life (hrs) | 50,000 |
|---|---|
| Order Code | PYCC-2U1UNV080S-40C |
| Input Volts | 120-277 VAC |
| Output Current | 650 / 700 / 750 / 800 mA |
| Max Output Voltage | 42 |
| Watts | 34 |
| Brand | Fulham |
| LED Type | Constant Current |
| Certifications | Class P, cULus, IP20, RoHS, Damp Location, Dry Location, FCC Title 47 Part 15 Class A, Class 2 Output, UL cUL CAN/CSA-C22.2 No. 250.13 |
| Class | Class 2 |
| Dimmable | Yes |
| Dimming Type | 0-10v |
| Mfg # | PYCC-2U1UNV080S-40C |
| Dimensions | 3.4 in. x 1.9 in. x 1.1 in. |
| Product Data Sheet | |
| Warranty | 5 years @ Tc 75°C from the date of manufacture |
| UPC | 10847098049996 |
