PYCC-2U1UNV060S-30C Fulham PONY Selectable (PYCC) 25W Constant Current LED Driver

Mfg # PYCC-2U1UNV060S-30C Item # 17072

Compact PONY Selectable (PYCC) Constant Current Dimmable LED Driver: 25 Total Watts, 450 / 500 / 550 / 600 mA Output Current, 42 VDC Output Voltage, 120-277 VAC Input Voltage, Class 2, 0-10v Dimming Control, 10%-100% Dimming Range

$29.94
$25.88

Fulham LED Drivers

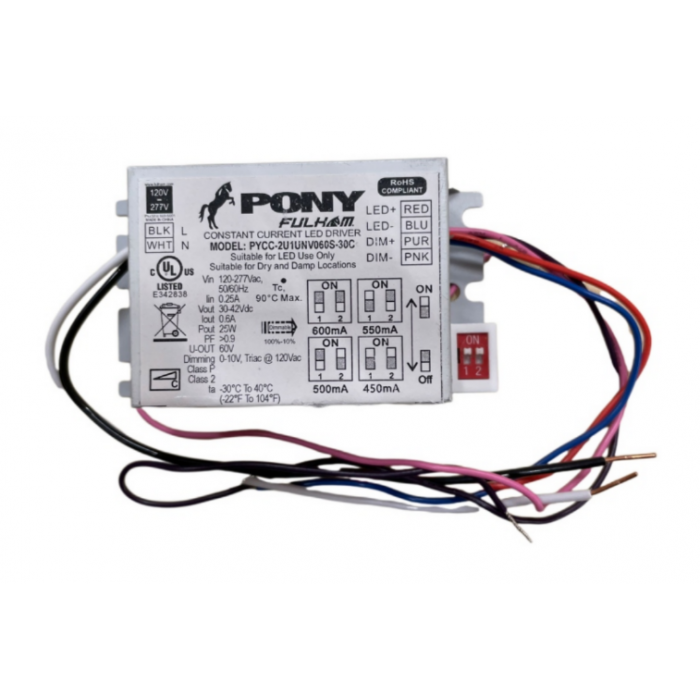

PYCC-2U1UNV060S-30C Fulham Compact PONY Selectable (PYCC) 25W Constant Current LED Driver

  • Input Voltage: 120V - 277V, 50/60Hz
  • Dimming Types: 0-10V & Phase@120V
  • Dimming Range: 100% - 10%
  • Class 2 LED Driver
  • cULus Listed, Class P
  • Isolated 0-10V from Input and Output
  • Selectable Output Current: 450 / 500 / 550 / 600mA
  • Output Voltage: 30-42VDC
Life (hrs) 50,000
Order Code PYCC-2U1UNV060S-30C
Input Volts 120-277 VAC
Output Current 450 / 500 / 550 / 600 mA
Max Output Voltage 42
Watts 25
Brand Fulham
LED Type Constant Current
Certifications Class P, cULus, IP20, RoHS, Damp Location, Dry Location, FCC Title 47 Part 15 Class A, Class 2 Output, UL cUL CAN/CSA-C22.2 No. 250.13
Class Class 2
Dimmable Yes
Dimming Type 0-10v
Mfg # PYCC-2U1UNV060S-30C
Dimensions 3.4 in. x 1.9 in. x 1.1 in.
Product Data Sheet
Warranty 5 years @ Tc 75°C from the date of manufacture
UPC 10847098049989
