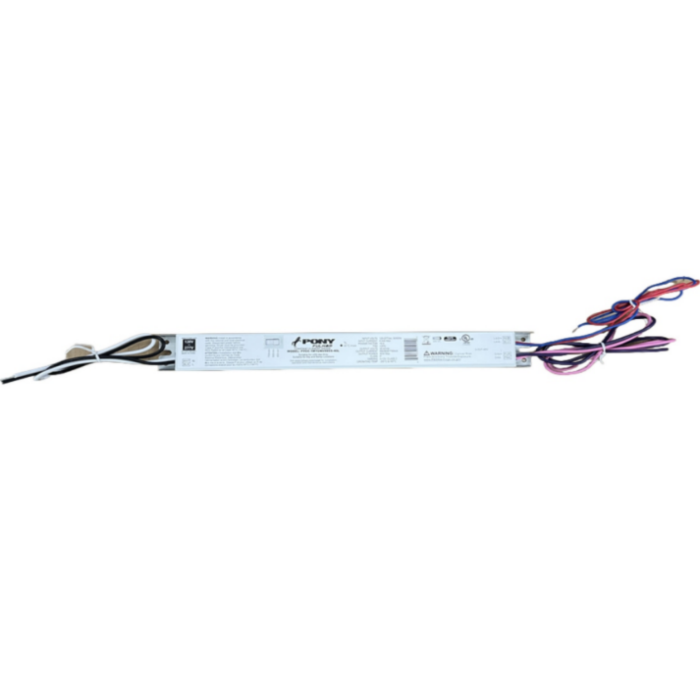

PYCC-1M1UNV085S-40L Fulham Linear PONY Selectable (PYCC) 40W Constant Current LED Driver
Special Price
$21.50
Regular Price
$26.88
SKU
17080
Linear PONY Selectable (PYCC) Constant Current Dimmable LED Driver: 40 Total Watts, 750 / 800 / 850 mA Output Current, 42 VDC Output Voltage, 120-277 VAC Input Voltage, Class 2, 0-10v Dimming Control, 10%-100% Dimming Range
PYCC-1M1UNV085S-40L Fulham Linear PONY Selectable (PYCC) 40W Constant Current LED Driver
- Input Voltage: 120V - 277V, 50/60Hz
- Selectable output current
- Class 2 LED Driver
- Class P
- Isolated 0-10V dimming
- Suitable for dry and damp location
| Life (hrs) | 50,000 |
|---|---|
| Order Code | PYCC-1M1UNV085S-40L |
| Input Volts | 120-277 VAC |
| Output Current | 750 / 800 / 850 mA |
| Max Output Voltage | 42 |
| Watts | 40 |
| Brand | Fulham |
| LED Type | Constant Current |
| Certifications | Class P, cULus, IP20, UL 8750, RoHS, Damp Location, Dry Location, FCC Part 15 Class B, Class 2 Output, UL1310, CSA C22.2 No.250.13 |
| Class | Class 2 |
| Dimmable | Yes |
| Dimming Type | 0-10v |
| Mfg # | PYCC-1M1UNV085S-40L |

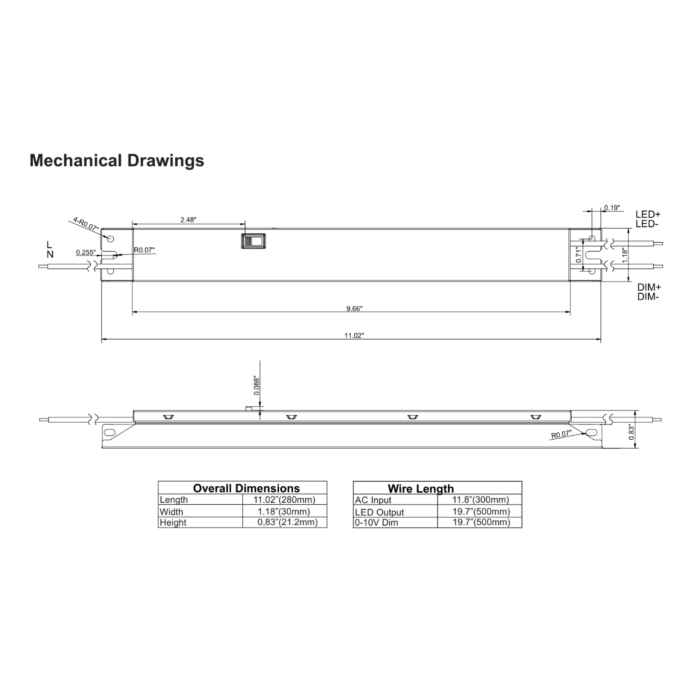

| Dimensions | 11.02 in. x 1.18 in. x 0.83 in. |
| Product Data Sheet | |
| Warranty | 5 years @ Tc 90°C from the date of manufacture |
| UPC | 10847098049149 |
