PYCC-1M1UNV085S-40D Fulham Linear PONY Selectable (PYCC) 35W Constant Current LED Driver

SKU# 17079

$26.88
$21.50

Fulham LED Drivers

PYCC-1M1UNV085S-40D Fulham Linear PONY Selectable (PYCC) 35W Constant Current LED Driver

  • Input Voltage: 120V - 277V, 50/60Hz
  • Selectable output current
  • Class 2 LED Driver
  • Class P
  • Isolated 0-10V dimming
  • Suitable for dry and damp location
Life (hrs) 50,000
Order Code PYCC-1M1UNV085S-40D
Input Volts 120-277 VAC
Output Current 750 / 800 / 850 mA
Max Output Voltage 42
Watts 35
Brand Fulham
LED Type Constant Current
Certifications Class P, cULus, FCC, IP20, UL 8750, RoHS, Damp Location, Dry Location, FCC Part 15 Class B, Class 2 Output, UL1310, CSA C22.2 No.250.13
Class Class 2
Dimmable Yes
Dimming Type 0-10v
Mfg # PYCC-1M1UNV085S-40D

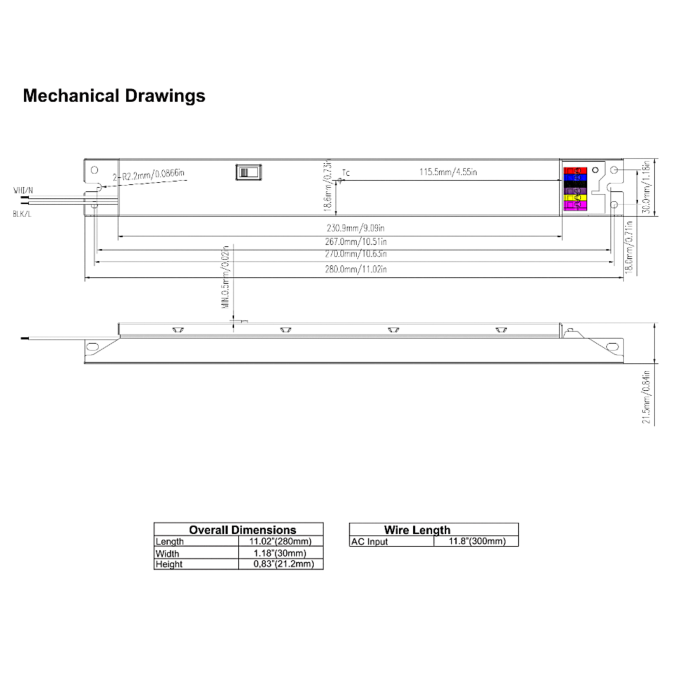

Dimensions 11.02 in. x 1.18 in. x 0.83 in.
Product Data Sheet
Warranty 5 years @ Tc 90°C from the date of manufacture
UPC 10847098049941
