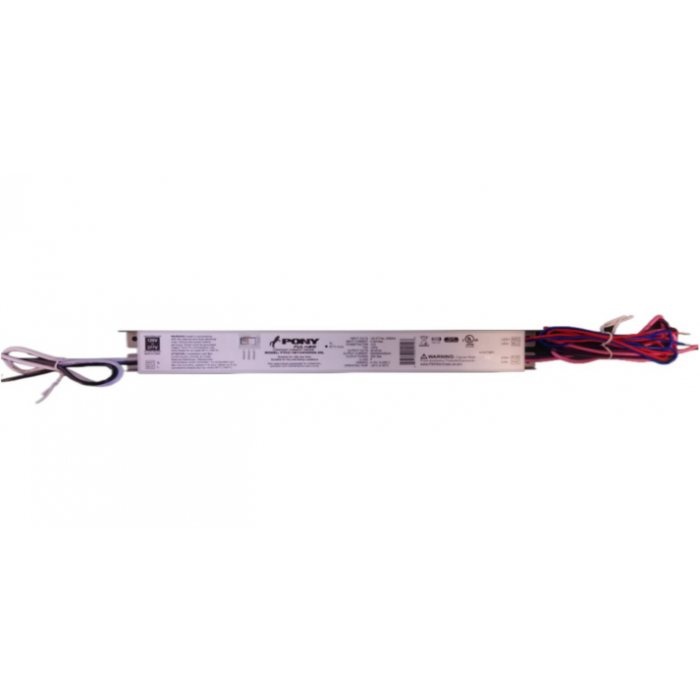

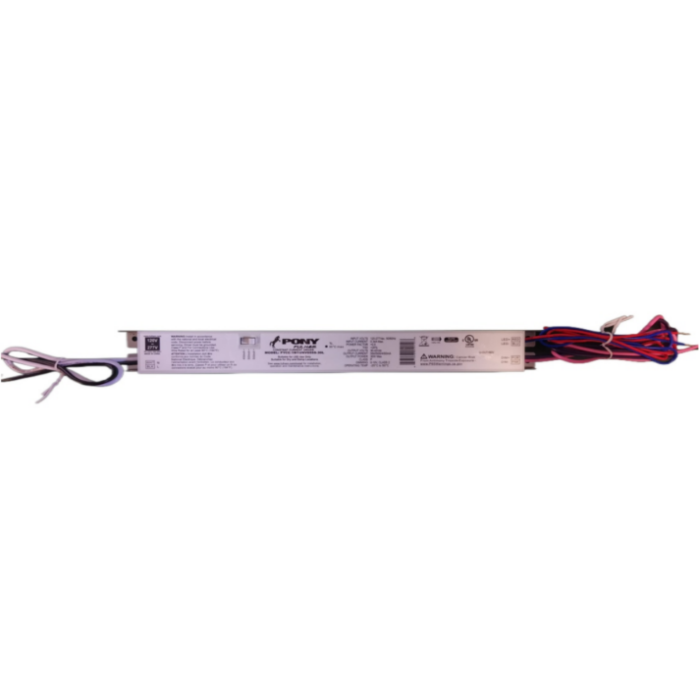

PYCC-1M1UNV055S-30L Fulham Linear PONY Selectable (PYCC) 30W Constant Current LED Driver

Mfg # PYCC-1M1UNV055S-30L Item # 17077

Linear PONY Selectable (PYCC) Constant Current Dimmable LED Driver: 30 Total Watts, 450 / 500 / 550 mA Output Current, 42 VDC Output Voltage, 120-277 VAC Input Voltage, Class 2, 0-10v Dimming Control, 10%-100% Dimming Range

$25.10
$20.08

Fulham LED Drivers

PYCC-1M1UNV055S-30L Fulham Linear PONY Selectable (PYCC) 30W Constant Current LED Driver

  • Input Voltage: 120V - 277V, 50/60Hz
  • Selectable output current
  • Class 2 LED Driver
  • Class P
  • Isolated 0-10V dimming
  • Suitable for dry and damp location
Life (hrs) 50,000
Order Code PYCC-1M1UNV055S-30L
Input Volts 120-277 VAC
Output Current 450 / 500 / 550 mA
Max Output Voltage 42
Watts 30
Brand Fulham
LED Type Constant Current
Certifications Class P, cULus, IP20, UL 8750, RoHS, Damp Location, Dry Location, FCC Part 15 Class B, Class 2 Output, UL1310, CSA C22.2 No.250.13
Class Class 2
Dimmable Yes
Dimming Type 0-10v
Mfg # PYCC-1M1UNV055S-30L

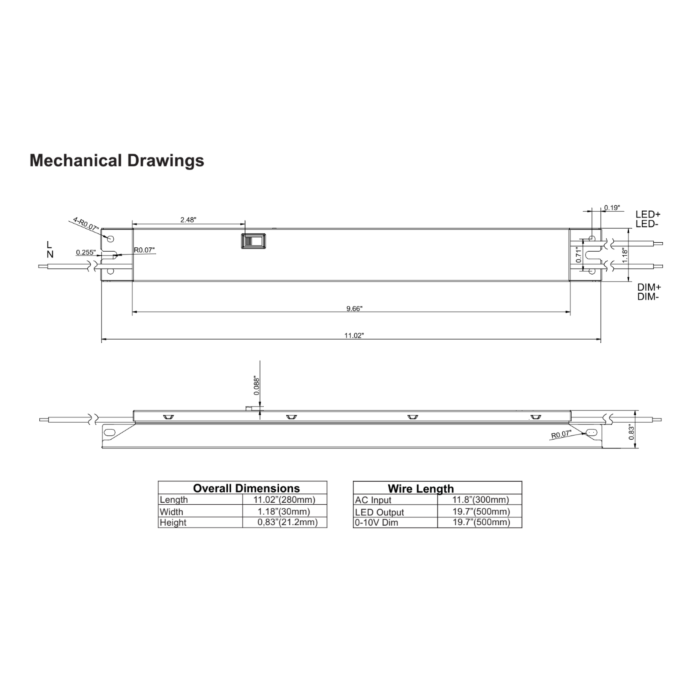

Dimensions 11.02 in. x 1.18 in. x 0.83 in.
Product Data Sheet
Warranty 5 years @ Tc 90°C from the date of manufacture
UPC 10847098049125
