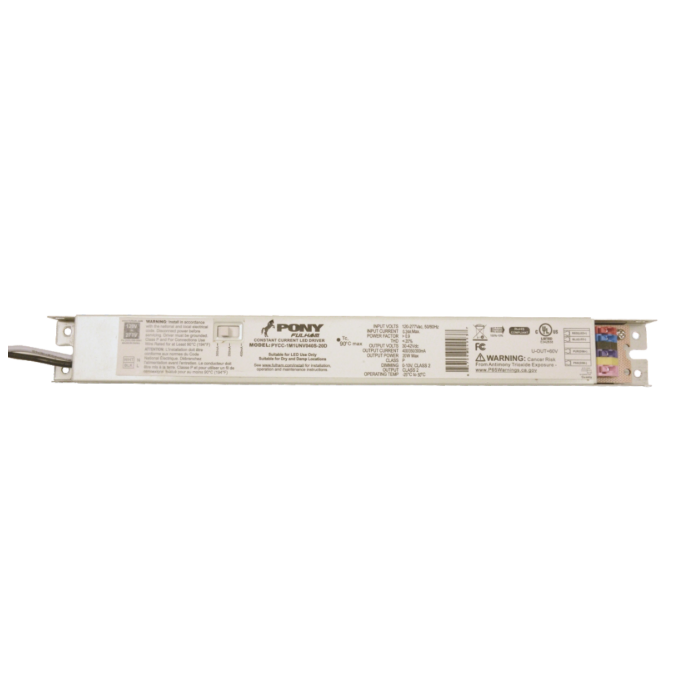

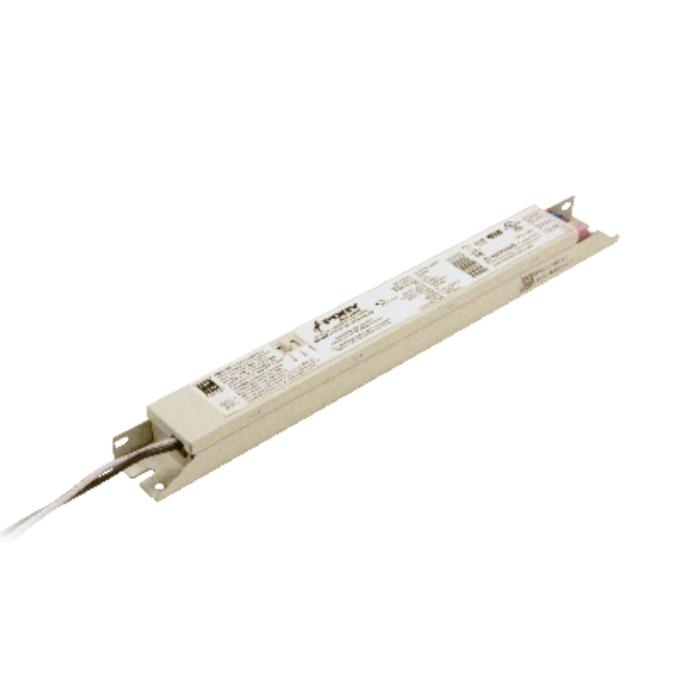

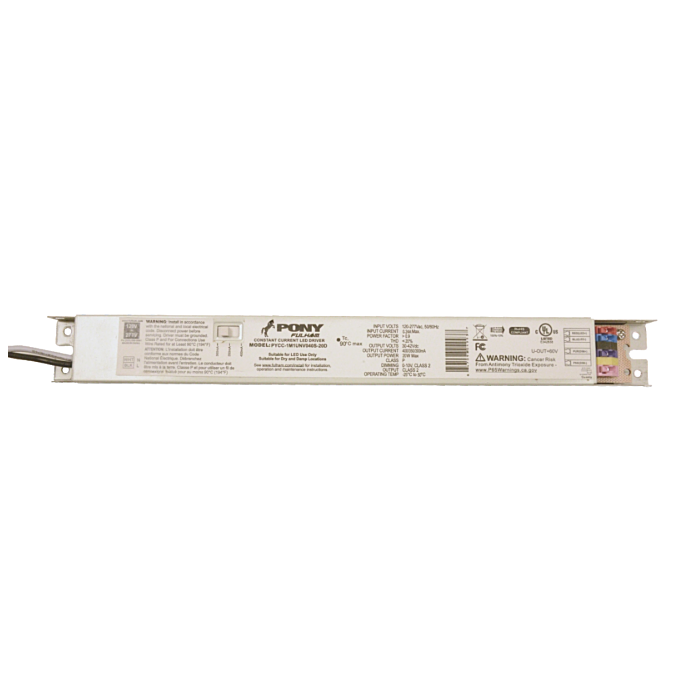

PYCC-1M1UNV040S-20D Fulham Linear PONY Selectable (PYCC) 16W Constant Current LED Driver

Mfg # PYCC-1M1UNV040S-20D Item # 17075

Linear PONY Selectable (PYCC) Constant Current Dimmable LED Driver: 16 Total Watts, 300 / 350 / 400 mA Output Current, 42 VDC Output Voltage, 120-277 VAC Input Voltage, Class 2, 0-10v Dimming Control, 10%-100% Dimming Range

$24.77
$19.82

Fulham LED Drivers

PYCC-1M1UNV040S-20D Fulham Linear PONY Selectable (PYCC) 16W Constant Current LED Driver

  • Input Voltage: 120V - 277V, 50/60Hz
  • Selectable output current
  • Class 2 LED Driver
  • Class P
  • Isolated 0-10V dimming
  • Suitable for dry and damp location
Life (hrs) 50,000
Order Code PYCC-1M1UNV040S-20D
Input Volts 120-277 VAC
Output Current 300 / 350 / 400 mA
Max Output Voltage 42
Watts 16
Brand Fulham
LED Type Constant Current
Certifications Class P, cULus, FCC, IP20, UL 8750, RoHS, Damp Location, Dry Location, FCC Part 15 Class B, Class 2 Output, UL1310, CSA C22.2 No.250.13
Class Class 2
Dimmable Yes
Dimming Type 0-10v
Mfg # PYCC-1M1UNV040S-20D

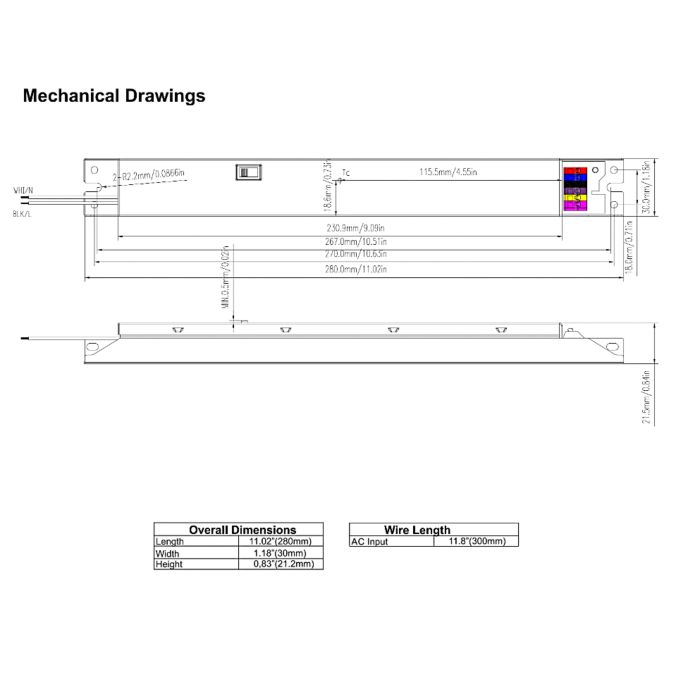

Dimensions 11.02 in. x 1.18 in. x 0.83 in.
Product Data Sheet
Warranty 5 years @ Tc 90°C from the date of manufacture
UPC 10847098049934
