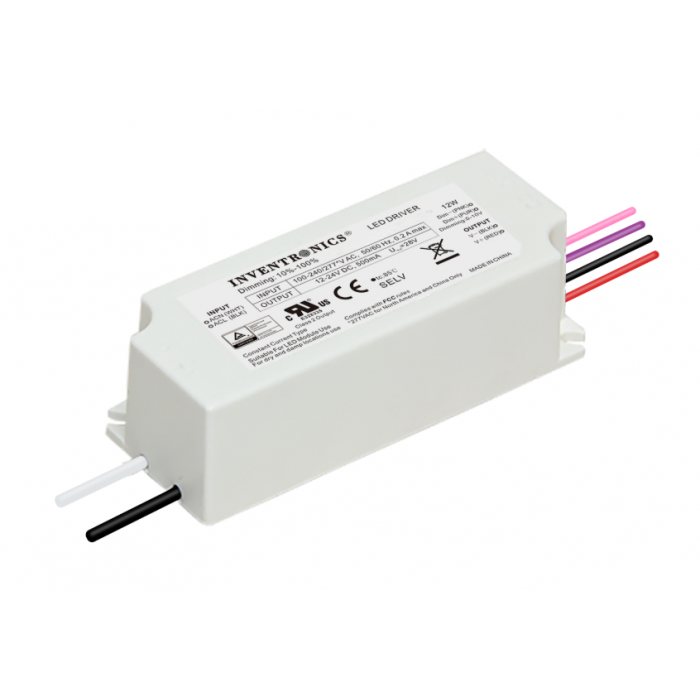

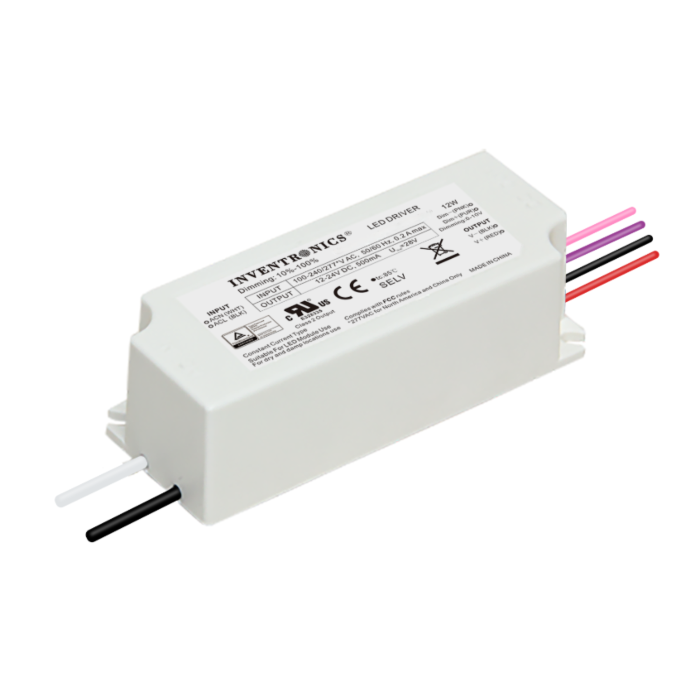

LUC-012S070DSP Inventronics 12W Constant Current LED Driver

Mfg # LUC-012S070DSP Item # 17151

Fixed, Constant Current, Dimmable LED Driver: 12 Total Watts, 700 mA Output Current, 17 VDC Output Voltage, 90 ~ 305 Vac Input Voltage, Class 2, 0-10v Dimming Control

$24.94
$19.95

Inventronics LED Drivers

LUC-012S070DSP Inventronics 12W Constant Current LED Driver

  • 0 -10V Dimmable (Compatible with Passive Dimmers)
  • Constant Current Output
  • High Efficiency
  • Active Power Factor Correction
  • All-Around Protection: OLP, SCP and Open Lamp Protection
  • Class 2 & SELV Output
Life (hrs) 90,000
Order Code LUC-012S070DSP
Input Volts 90 ~ 305 Vac
Output Current 700 mA
Watts 12
Brand Inventronics
LED Type Constant Current
Certifications FCC, FCC Part 15, IP20, UL 8750, CE, cRUus, Class 2 Output, CE EN61347-1, CE EN61347-2-13, UL cUL CAN/CSA-C22.2 No. 250.13, UL1310, SELV, EN55015 Conducted emission Test & Radiated emission Test, EN61000-3-2 Harmonic current emissions, EN61000-3-3 Voltage fluctuations & flicker, ANSI C63.4 Class B, EN61000-4-8 Power Frequency Magnetic Field Test, EN61000-4-11 Voltage Dips, EN61547 Electromagnetic Immunity Requirements Applies To Lighting Equipment, CB, EN61000-4-6 Conducted Radio Frequency Disturbances Test-CS, EN61000-4-3 Radio-Frequency Electromagnetic Field Susceptibility Test-RS, EN61000-4-4 Electrical Fast Transient / Burst-EFT, IEC61347-1, IEC61347-2-13
Class Class 2
Dimmable Yes
Dimming Type 0-10v
Mfg # LUC-012S070DSP
Dimensions 4.12 in. x 1.65 in. x 1.2 in.
Product Data Sheet
Warranty 5 Year Warranty
