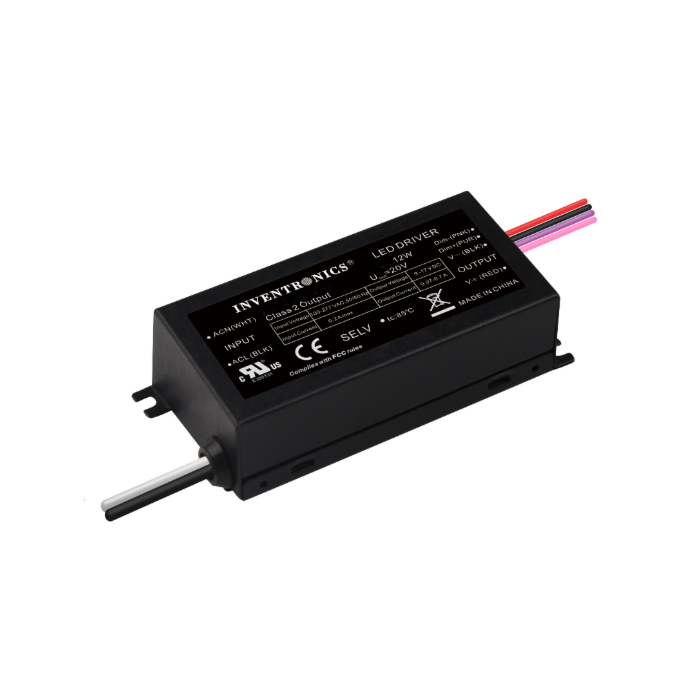

LUC-012S050DSM Inventronics 12W Constant Current LED Driver
Special Price
$24.43
Regular Price
$30.54
SKU
17146
Fixed, Constant Current, Dimmable LED Driver: 12 Total Watts, 500 mA Output Current, 24 VDC Output Voltage, 90 ~ 305 Vac Input Voltage, Class 2, 0-10v Dimming Control
LUC-012S050DSM Inventronics 12W Constant Current LED Driver
- 0 -10V Dimmable (Compatible with Passive Dimmers)
- Constant Current Output
- High Efficiency
- Active Power Factor Correction
- All-Around Protection: OLP, SCP and Open Lamp Protection
- Class 2 & SELV Output
| Life (hrs) | 90,000 |
|---|---|
| Order Code | LUC-012S050DSM |
| Input Volts | 90 ~ 305 Vac |
| Output Current | 500 mA |
| Max Output Voltage | 24 |
| Watts | 12 |
| Brand | Inventronics |
| LED Type | Constant Current |
| Certifications | FCC, FCC Part 15, IP20, UL 8750, CE, cRUus, Class 2 Output, CE EN61347-1, CE EN61347-2-13, UL cUL CAN/CSA-C22.2 No. 250.13, SELV, EN55015 Conducted emission Test & Radiated emission Test, EN61000-3-2 Harmonic current emissions, EN61000-3-3 Voltage fluctuations & flicker, ANSI C63.4 Class B, EN61000-4-8 Power Frequency Magnetic Field Test, EN61000-4-11 Voltage Dips, EN61547 Electromagnetic Immunity Requirements Applies To Lighting Equipment, CB, EN61000-4-6 Conducted Radio Frequency Disturbances Test-CS, EN61000-4-3 Radio-Frequency Electromagnetic Field Susceptibility Test-RS, EN61000-4-4 Electrical Fast Transient / Burst-EFT, IEC61347-1, IEC61347-2-13 |
| Class | Class 2 |
| Dimmable | Yes |
| Dimming Type | 0-10v |
| Mfg # | LUC-012S050DSM |
| Dimensions | 3.29 in. x 1.64 in. x 1.01 in. |
| Product Data Sheet | |
| Warranty | 5 Year Warranty |
