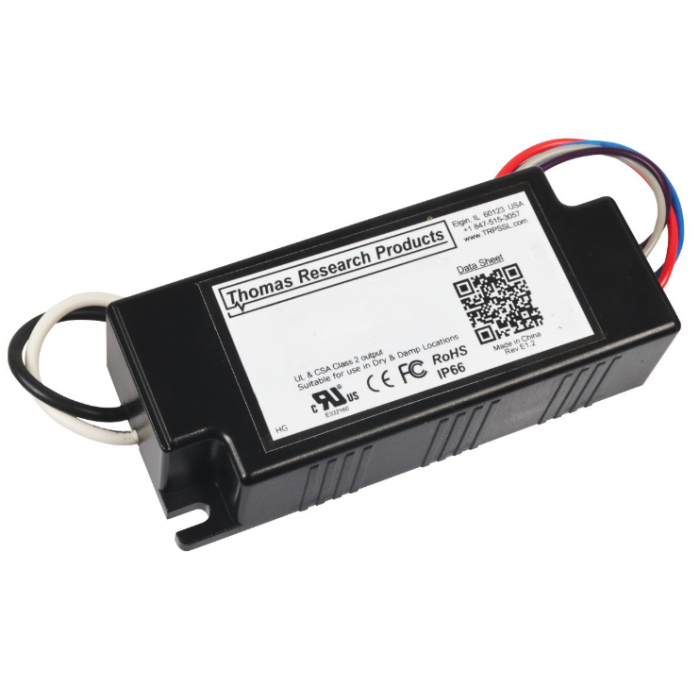

LED20W-28-C0700-D Thomas Research Products 20W Constant Current Dimmable LED Driver
Special Price
$44.07
Regular Price
$55.09
SKU
17169
LED-20W CC Series Fixed Constant Current Dimmable LED Driver: 20 Total Watts, 700 mA Output Current, 28 VDC Output Voltage, 120-277 VAC Input Voltage, Class 2, 0-10V Dimming Control, 1%-100% Dimming Range
LED20W-28-C0700-D Thomas Research Products 20W Constant Current Dimmable LED Driver
- Total Power: 20 Watts
- Input Voltage: 120-277 Vac Nom.
- UL Dry & Damp Location Rated
- High Power Factor
- UL Type HL Rated for Hazardous Locations
- Constant Current, Dimming with Isolation
- Black Magic Thermal Advantage™ Plastic Housing
- 0-10V Linear Dimming 1% to 100%
- Dims to Zero @ ≤1.0V, Standby Power ≤0.5W
| Life (hrs) | 48,000 |
|---|---|
| Order Code | LED20W-28-C0700-D |
| Input Volts | 120-277 VAC |
| Output Current | 700 mA |
| Max Output Voltage | 28 |
| Watts | 20 |
| Brand | Thomas Research Products |
| LED Type | Constant Current |
| Certifications | IP66, UL 8750, RoHS, Type HL, UL damp & dry, EN61000-3-2, EN61000-3-3, CSA 22.2, CE EN61347 |
| Class | Class 2 |
| Dimmable | Yes |
| Mfg # | LED20W-28-C0700-D |
| Dimensions | 3.74 in. x 1.61 in. x 0.98 in. |
| Product Data Sheet | |
| Warranty | Manufacturers 5 Year |
