Advance Mark 7 IZT-4S32 T8 Dimming Ballast

Special Price $77.15 Regular Price $123.44

SKU

7447

Advance Mark 7 0-10V IZT-4S32 for (4) F25T8, (4) F32T8. Input of 120/277v.

DISCONTINUED by Advance. SEE the Advance IZT-4PSP32-G as a possible replacement.

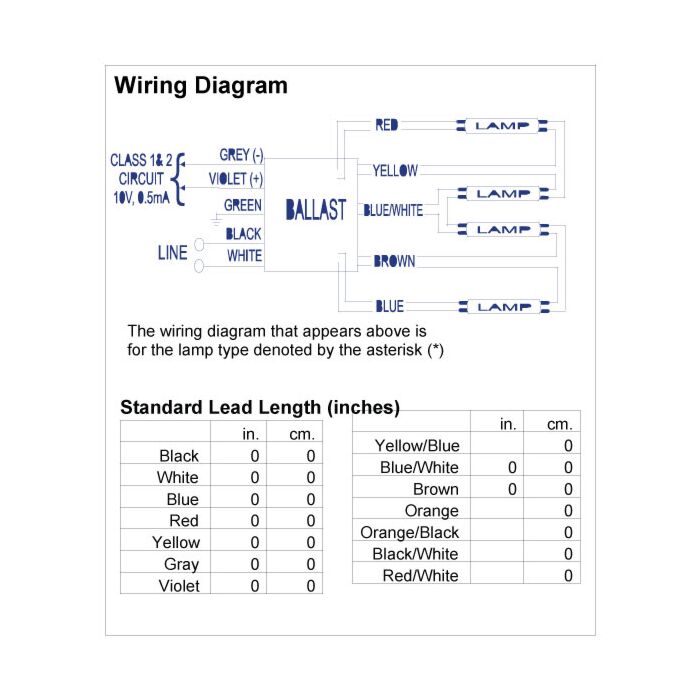

The IZT-4S32 runs the lamps in series, whereas the IZT-4PSP32-G runs the lamps parallel, so there WILL be rewiring involved in order to use the IZT-4PSP32-G in place of the IZT-4S32.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

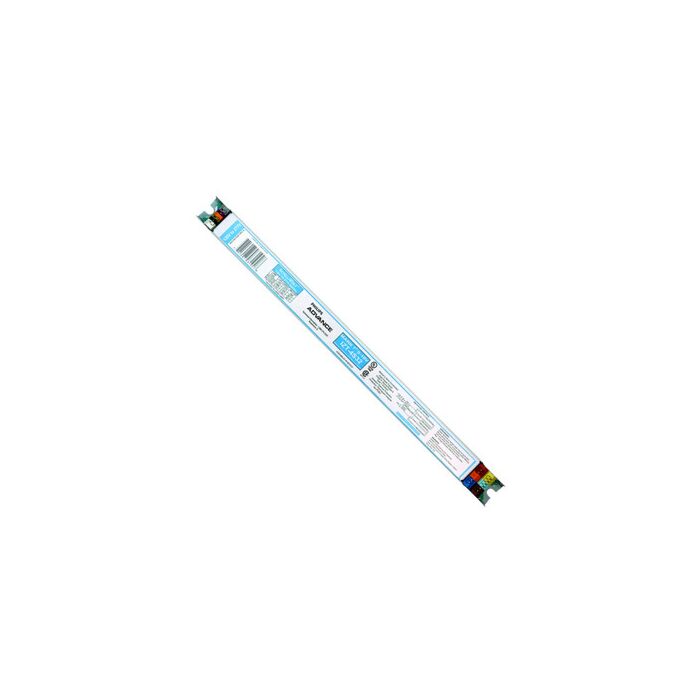

Advance Mark 7 0-10V IZT-4S32 Dimming Ballast

The Mark 7 0-10V series of controllable electronic ballasts are ideal for energy management systems in a broad range of commercial, institutional, and retail applications. They offerfull-range continuous dimming and help support sustainable (green) design.

Direct operation from a 0-10V control signal

Class A sound rating

Operates from 50/60 Hz input source of 120V or 277V with sustained variations of +/- 10% (voltage and frequency). IntelliVoltmodels shall operate from 50/60 Hz input source of 120V through 277V with sustained variations of +/- 10%

Programmed start

Minimum ballast factor of 1.00 (1-3 lamp models) or 0.88 (4-lamp models with 1.18 for HL versions) at maximum lightoutput and 0.03 at minimum light output for primary lamp

More Information

More Information
Order Code	IZT4S3235M
Input Volts	120-277V
Brand	Advance Mark 7 0-10V
Mfg #	IZT4S3235M
# of Lamps	4 Lamps
Product Data Sheet	IZT-4S32 Mark 7 Brochure
Certifications	Class P, CSA, FCC Part 18 (Class A), Outdoor Type 1, Sound Rated: A, UL
Equivalents	NA
Start Method	Programmed Start
Starting Temperature	50ºF, 10ºC
Lamps	(4) F25T8, (4) F32T8

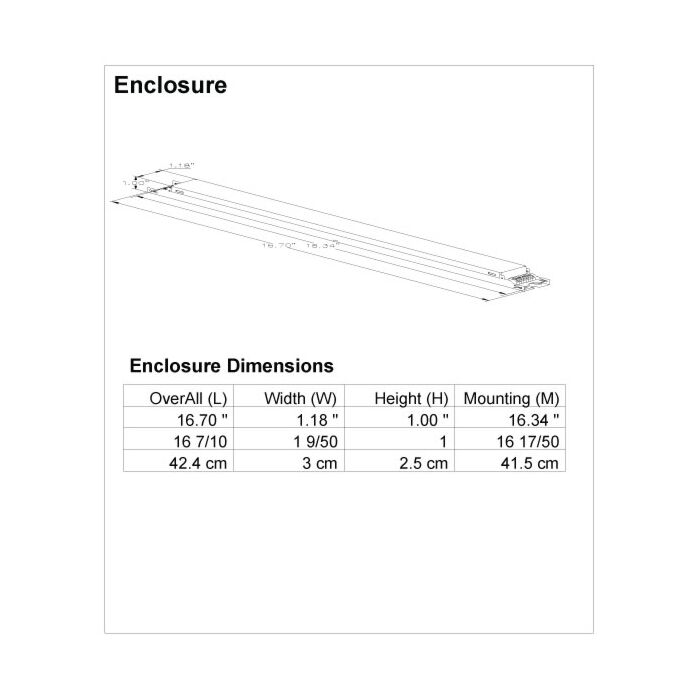

Dimensions	16.7" x 1.18" x 1"
Case Size	ea
Warranty	5 Year Advance Warranty
UPC	781087031933
