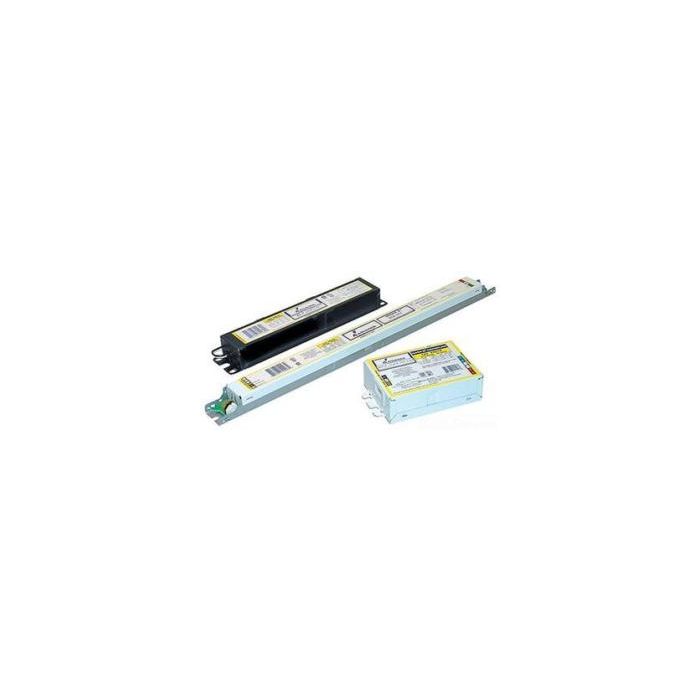

Advance Mark 10 IEZ-2S24-D T5 Electronic Dimming Ballast

SKU# 7264

$169.40
$127.05
IEZ-2S24

Advance Mark 10 IEZ-2S24-D Dimming Ballast

Mark 10 Powerline electronic controllable ballasts for linear T5HO lamps combine the long life and energy efficiency of fluorescent technology with the controllability and full-rangedimming of incandescent systems. And they’re easy to install because they require no additional wiring.

  • Minimum starting temperature of 50F
  • Provides Lamp EOL Protection Circuit for all T5, T5/HO and CFL lamps
  • Lamp Current Crest Factor of 1.7
  • Contains auto restart circuitry in order to restart lamps without resetting power

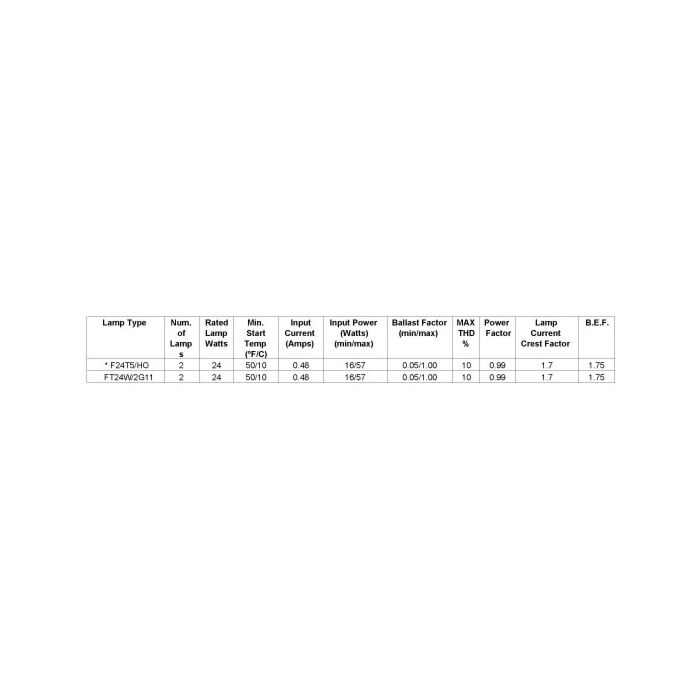

  • Minimum ballast factor of 1.00 at maximum light output and 0.05 at minimum light output for primary lamp application
Order Code IEZ2S24D35M
Input Volts 120-277V
Brand Advance Mark 10
Mfg # IEZ2S24D35M
# of Lamps 2 Lamps
Product Data Sheet
Certifications Class P, CSA, FCC Part 18 (Class A), Outdoor Type 1, Sound Rated: A, UL
Equivalents NA
Start Method Programmed Start
Starting Temperature 50ºF, 10ºC
Lamps (2) F24T5/HO, (2) FT24W/2G11

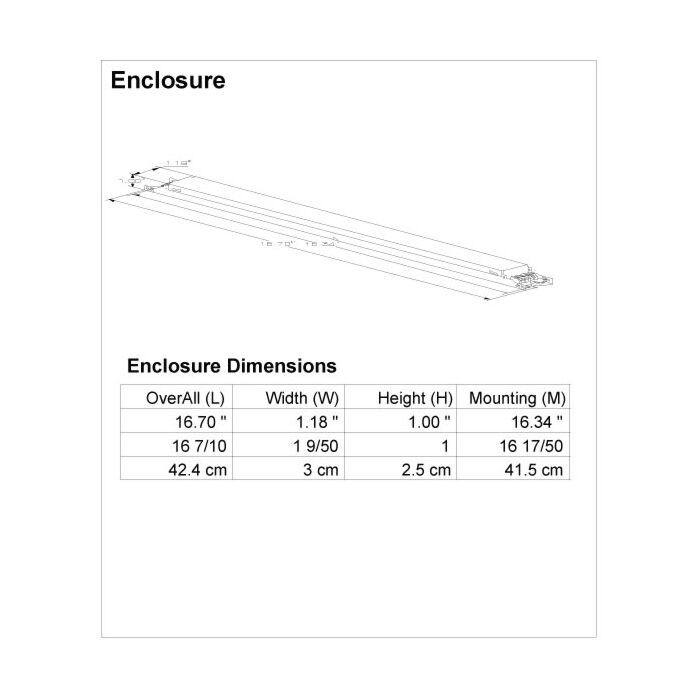

Dimensions 16.7" x 1.18" x 1"
Case Size ea
Warranty 5 Year Advance Warranty
UPC 781087051474
