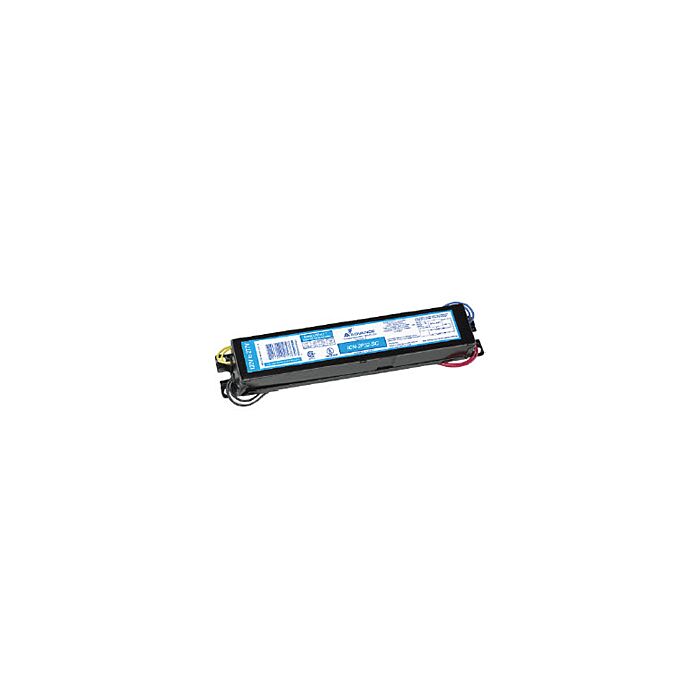

Advance Centium ICN-3P32-SC T8 Electronic Fluorescent Ballast - DISCONTINUED SEE the ICN-3P32-N

2 review(s)

Special Price $13.52 Regular Price $23.32

SKU

LD-ICN3P32SC

Advance Centium Electronic Fluorescent Ballast - Lamps: (2/3) F17T8, (2/3) F25T8, (2/3) F32T8, (2/3) F32T8/ES (25W), (2/3) F32T8/ES (28W), (2/3) F32T8 (30W), (2) F40T8 -Input:120-277V -Starting: Instant Start

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Advance Electronic Fluorescent Centium® T8 Ballast

High Power Factor

Operates from 60 Hz input source of 120-277V with sustained variations of +/- 10% (voltage and frequency).

Volts: 120-277V

Instant Start Method

Min Starting Temp: 0ºF , -18ºC

Case Temp: 70°C

<10% THD

Sustained open circuit and short circuit output conditions

REPLACED by the ICN-3P32-N. Same wiring and specs. Slightly narrower & shorter than the -SC version. Same length

More Information

More Information
Order Code	ICN3P32SC
Input Volts	120-277V
Brand	Advance Centium
Mfg #	ICN-3P32-SC
# of Lamps	2 Lamps, 3 Lamps
Product Data Sheet	EL-2030-R07a
Certifications	CSA, UL
Equivalents	GE GE332MAX-N, GE332MAX-N/CTR, GE332MAX-N/CTR, GE332MAX-N/ULTRA, GE-332-MV-N, GE-332-120-N, GE-332-277-N Sylvania QT2X31/220IS, QT2X31/220ISN-SC, QT2X32/277HD10, QT2X32/277IS, QT2X32/277ISN-SC, QT2X32T8/120ISN, QT2X32T8/120ISN-SC, QT2X32T8/277ISN, QT2X32T8/277ISN-SC, QTP2X32T8/120ISN-SC, QTP2X32T8/277ISN-SC, QTP2X32T8/UNVISN-SC, M2-IN-T8-D-277, M2-RN-T8-1LL-B-120 Universal B332IUNVHP-A, B332I120HP, B332I277HP Advance RCN-3P32-SC, REL-3P32-SC, VCN-3P32-SC, VEL-3P32-SC
Start Method	Instant Start
Starting Temperature	0ºF, -18ºC
Lamps	(2/3) F17T8, (2/3) F25T8, (2/3) F32T8, (2/3) F32T8/ES (25W), (2/3) F32T8/ES (28W), (2/3) F32T8 (30W), (2) F40T8
Dimensions	9.5”(L) x 1.7”(W) x 1.18”(H)
Case Size	10
Warranty	5 Year Advance Philips Limited Warranty
UPC	781087091494
