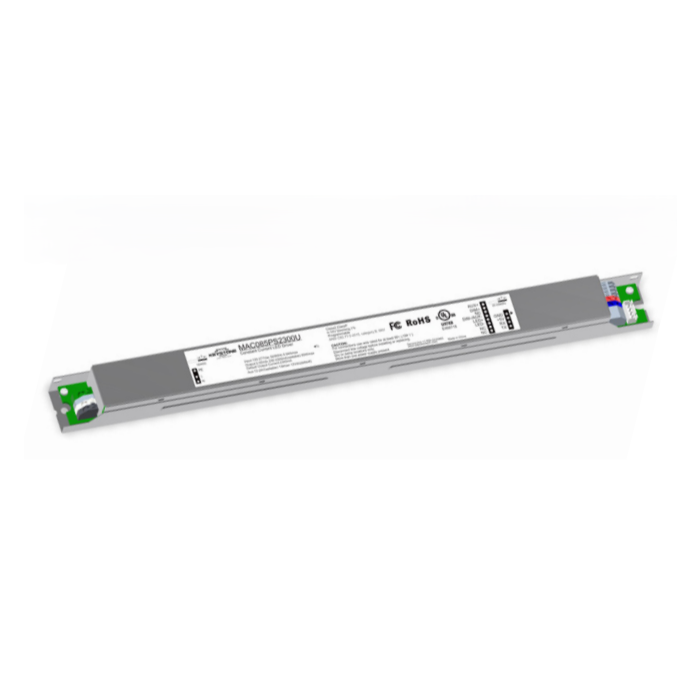

KTLD-85-UV-P2300-55-VDIM-LT2 Keystone SmartCurrent Flex Linear 85w Constant Current LED Driver
Special Price
$29.18
Regular Price
$36.48
SKU
17014
SmartCurrent Flex Linear Programmable Constant Current Dimmable LED Driver: 85 Total Watts, 230–2300mA Output Current, 55 VDC Output Voltage, 120-277 VAC Input Voltage, Class 2, 0-10v Dimming Control, 1%-100% Dimming Range
KTLD-85-UV-P2300-55-VDIM-LT2 Keystone SmartCurrent Flex Linear 85w Constant Current LED Driver
- Linear Form Factor, Metal Casing
- 0-10V Dimming, Compliant with ANSI C137.1
- True 1% Dimming over full Output Current Range
- Programmable Output in 1mA Increments
- Flicker Free, T24: JA8 & IEE1789 Compliant
- Programmable Settings via Keystone Programming Kit
- For Indoor Applications
- Class A Sound Rating
- Optional 12-24V Programmable Aux Power
| Life (hrs) | 50,000 |
|---|---|
| Order Code | RUA-27 |
| Input Volts | 120-277 VAC |
| Output Current | 230–2300mA |
| Watts | 85 |
| Brand | Keystone |
| LED Type | Constant Current |
| Certifications | Class P, cULus, FCC, Sound Rated: A, Title24, UL, UL 8750, RoHS, UL Class P, EN61000-3-2 Harmonic Current Emissions Class C, FCC Part 15 Class B, CE EN61347-1, CE EN61347-2-13, NLB, ANSI C137.1, Flicker Free, JA8, IEE1789, UL cUL CAN/CSA-C22.2 No. 250.13 |
| Class | Class 2 |
| Dimmable | Yes |
| Dimming Type | 0-10v |
| Mfg # | KTLD-85-UV-P2300-55-VDIM-LT2 |
| Dimensions | 14.96 in. x 1.18 in. x 1 in. |
| Product Data Sheet | |
| Warranty | Manufacturer's 10 year |
| UPC | 843654108810 |
