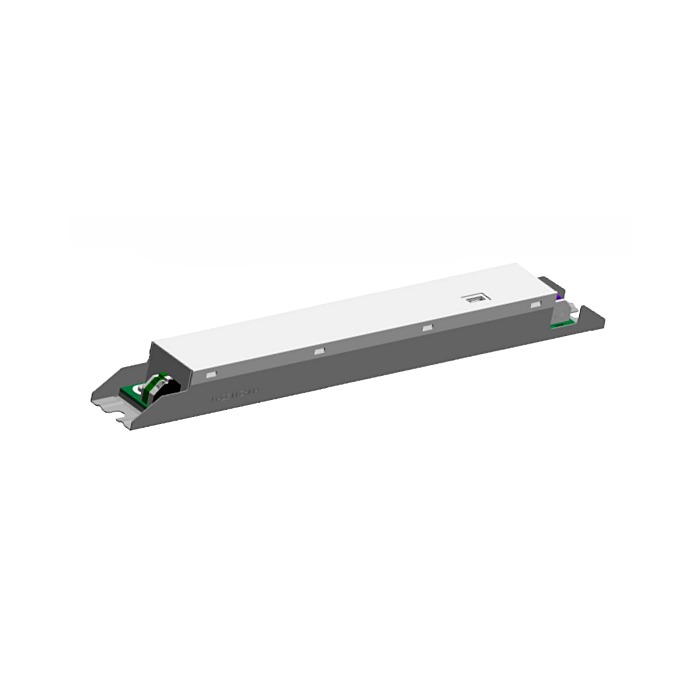

KTLD-50-UV-SC1400-56-VDIM-U7 /USB Keystone SmartCurrent- USB Programmable 50w Constant Current LED Driver
Special Price
$24.92
Regular Price
$31.15
SKU
17029
SmartCurrent- USB Programmable Constant Current Dimmable LED Driver: 50 Total Watts, 470 –1400mA Output Current, 56 VDC Output Voltage, 120-277 VAC Input Voltage, Class 2, 0-10v Dimming Control, 1%-100% Dimming Range
KTLD-50-UV-SC1400-56-VDIM-U7 /USB Keystone SmartCurrent- USB Programmable 50w Constant Current LED Driver
- Built in USB-C Port for easy programing
- Meets FCC Part 15 (Class B) consumer limits
- Short circuit overload and open load protection
- Dimmable with 0 –10V dimmer (down to 1% at max. output current)
- Auxiliary Power: 12Vdc; 200mA Max.
- THD: < 20%
- 20oC/-4oF to 50oC/122oF Operating Temperature
- 90oC/194oF maximum case temperature
- Input Frequency: 50/60 Hz
- Programmable output current via USB-C cable and an Android device (plus Keystone app) or PC (plus Keystone software)
| Life (hrs) | 50,000 |
|---|---|
| Order Code | LPU-14 |
| Input Volts | 120-277 VAC |
| Output Current | 470 –1400mA |
| Watts | 50 |
| Brand | Keystone |
| LED Type | Constant Current |
| Certifications | cULus, FCC, RoHS, EN61000-3-2 Harmonic Current Emissions Class C, FCC Part 15 Class B, CE EN61347-1, CE EN61347-2-13, NLB |
| Class | Class 2 |
| Dimmable | Yes |
| Dimming Type | 0-10v |
| Mfg # | KTLD-50-UV-SC1400-56-VDIM-U7 /USB |

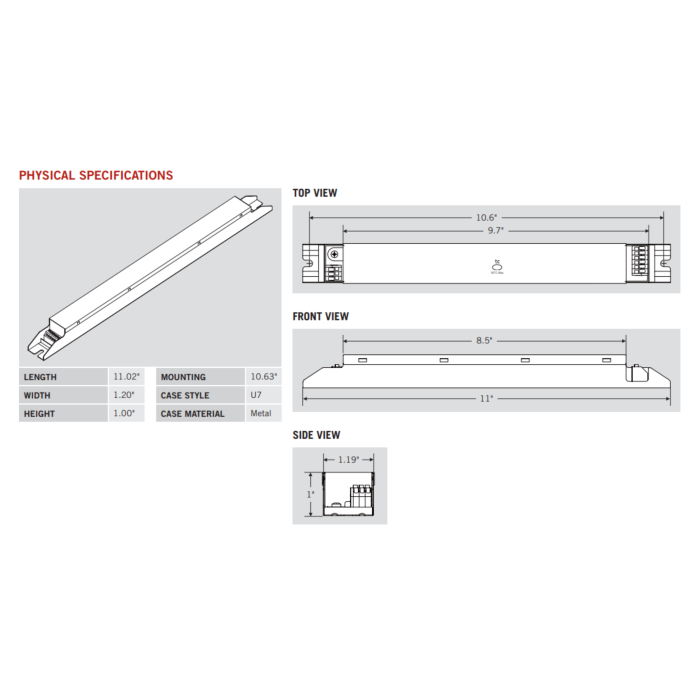

| Dimensions | 11.02 in. x 1.2 in. x 1 in. |
| Product Data Sheet | |
| Warranty | Manufacturer's 10 year |
| UPC | 843654136110 |
