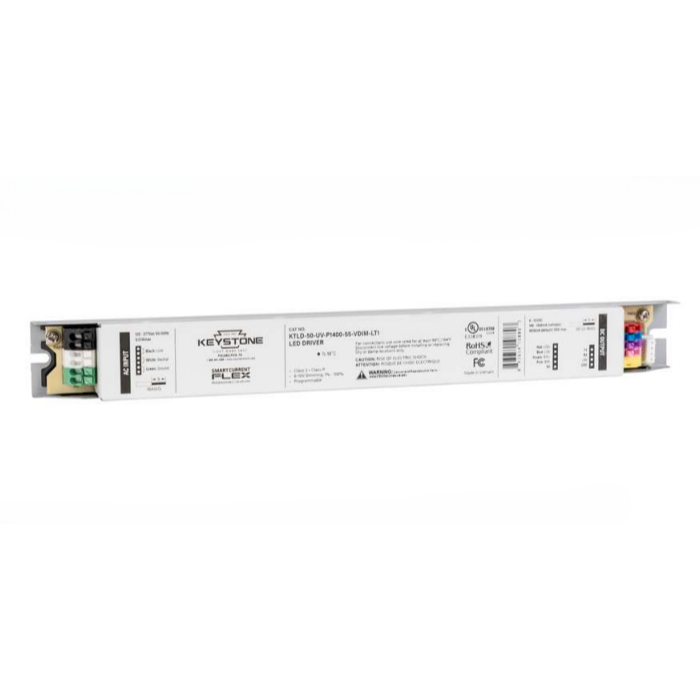

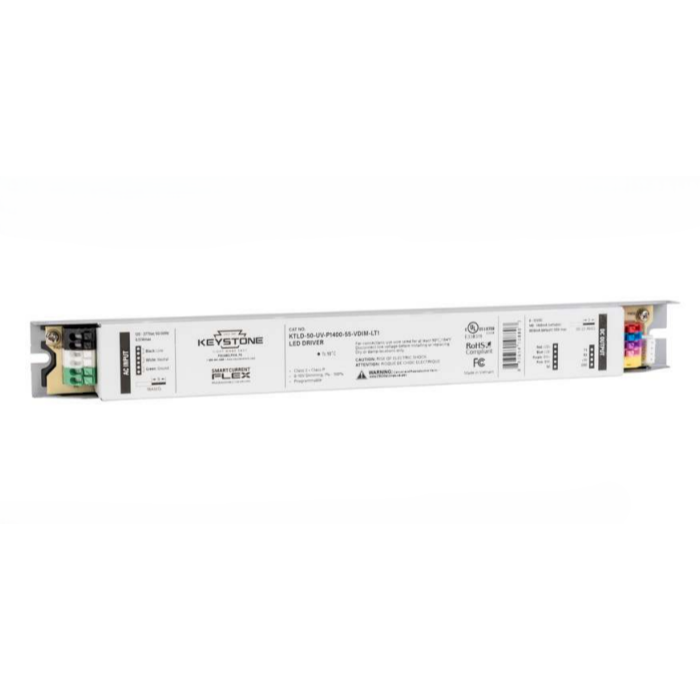

KTLD-50-UV-P1400-55-VDIM-LT1 Keystone SmartCurrent Flex Linear 50w Constant Current LED Driver
Special Price
$25.26
Regular Price
$31.58
SKU
17013
SmartCurrent Flex Linear Programmable Constant Current Dimmable LED Driver: 50 Total Watts, 140 –1400mA Output Current, 55 VDC Output Voltage, 120-277 VAC Input Voltage, Class 2, 0-10v Dimming Control, 1%-100% Dimming Range
KTLD-50-UV-P1400-55-VDIM-LT1 Keystone SmartCurrent Flex Linear 50w Constant Current LED Driver
- Linear Form Factor, Metal Casing
- 0-10V Dimming, Compliant with ANSI C137.1
- True 1% Dimming over full Output Current Range
- Programmable Output in 1mA Increments
- Flicker Free, T24: JA8 & IEE1789 Compliant
- Programmable Settings via Keystone Programming Kit
- For Indoor Applications
- Class A Sound Rating
- Optional 12-24V Programmable Aux Power
| Life (hrs) | 50,000 |
|---|---|
| Order Code | JUL-57 |
| Input Volts | 120-277 VAC |
| Output Current | 140 –1400mA |
| Watts | 50 |
| Brand | Keystone |
| LED Type | Constant Current |
| Certifications | Class P, cULus, Sound Rated: A, Title24, UL 8750, RoHS, FCC Part 15 Class B, CE EN61347-1, CE EN61347-2-13, NLB, UL cUL Class P, ANSI C137.1, Flicker Free, JA8, IEE1789, UL cUL CAN/CSA-C22.2 No. 250.13 |
| Class | Class 2 |
| Dimmable | Yes |
| Dimming Type | 0-10v |
| Mfg # | KTLD-50-UV-P1400-55-VDIM-LT1 |

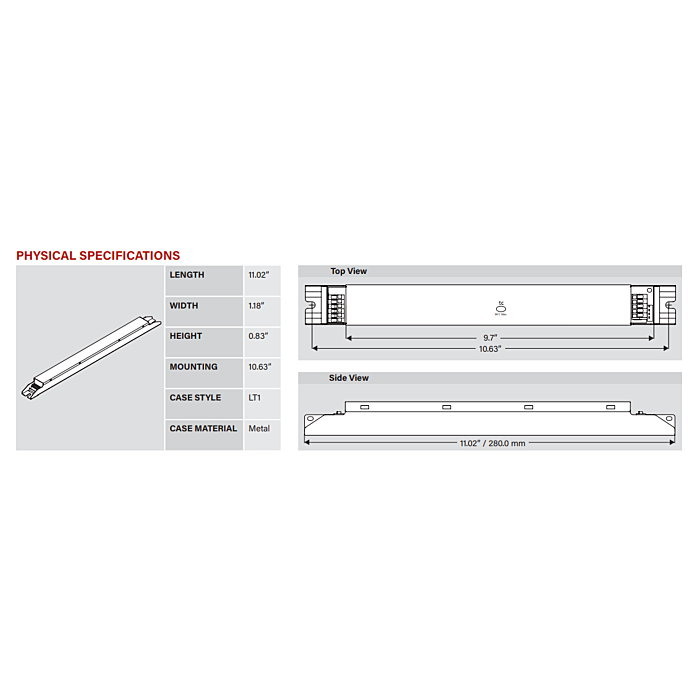

| Dimensions | 11.02 in. x 1.18 in. x 0.83 in. |
| Product Data Sheet | |
| Warranty | Manufacturer's 10 year |
| UPC | 843654108803 |
