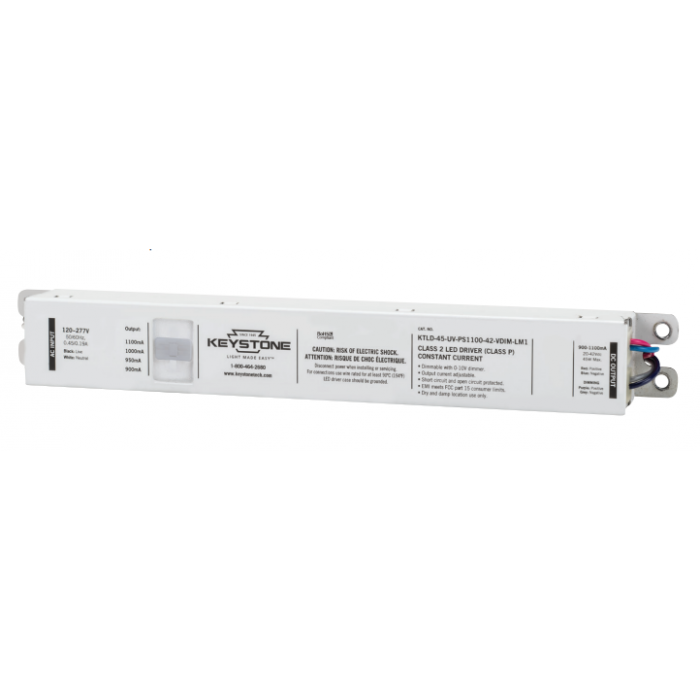

KTLD-45-UV-PS1100-42-VDIM-LM1 Keystone Power Selectable 45w Constant Current LED Driver

Mfg # KTLD-45-UV-PS1100-42-VDIM-LM1 Item # 17038 Order Code WTN-53

Power Selectable Switchable Constant Current Dimmable LED Driver: 45 Total Watts, 900, 950, 1000 or 1100mA Output Current, 42 VDC Output Voltage, 120-277 VAC Input Voltage, Class 2, 0-10v Dimming Control, 10%-100% Dimming Range

$33.10
$26.48

Keystone LED Drivers

KTLD-45-UV-PS1100-42-VDIM-LM1 Keystone Power Selectable 45w Constant Current LED Driver

  • Over voltage protection
  • Over current protection
  • Short circuit protection
  • 5-year warranty
Life (hrs) 50,000
Order Code WTN-53
Input Volts 120-277 VAC
Output Current 900, 950, 1000 or 1100mA
Max Output Voltage 42
Watts 45
Brand Keystone
LED Type Constant Current
Certifications Class P, cULus, FCC, RoHS, EN61000-3-2 Harmonic Current Emissions Class C, FCC Part 15 Class B, CE EN61347-1, CE EN61347-2-13
Class Class 2
Dimmable Yes
Dimming Type 0-10v
Mfg # KTLD-45-UV-PS1100-42-VDIM-LM1
Dimensions 9.49 in. x 1.23 in. x 1.15 in.
Product Data Sheet
Warranty Manufacturer's 10 year
UPC 843654128405
