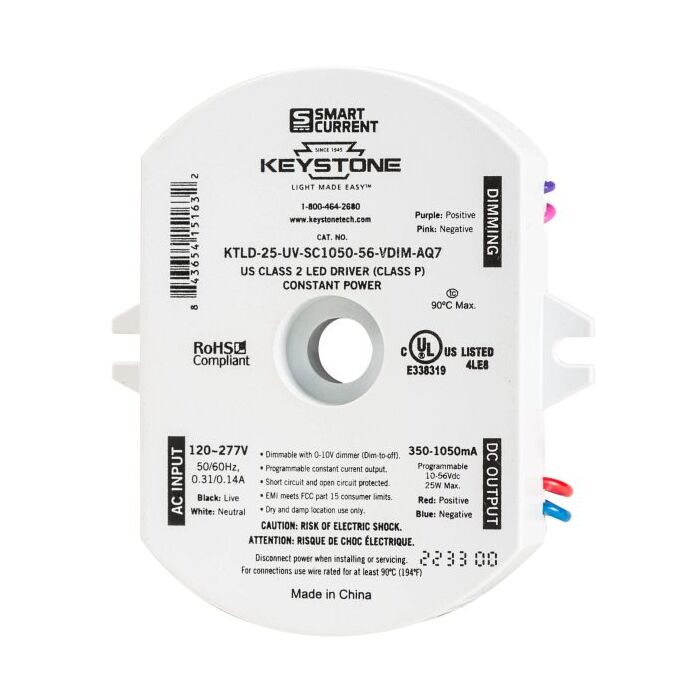

KTLD-25-UV-SC1050-56-VDIM-AQ7 Keystone SmartCurrent 25w Constant Current LED Driver
Special Price
$23.46
Regular Price
$29.33
SKU
17019
SmartCurrent Programmable Constant Current Dimmable LED Driver: 25 Total Watts, 350-1050mA Output Current, 56 VDC Output Voltage, 120-277 VAC Input Voltage, Non-Class 2, 0-10v Dimming Control, 1%-100% Dimming Range
KTLD-25-UV-SC1050-56-VDIM-AQ7 Keystone SmartCurrent 25w Constant Current LED Driver
- Meets FCC Part 15 (Class B) Consumer Limits
- Short Circuit Overload and Open Load Protection
- Dimmable with 0-10V Dimmer (Down to 1% at Max. Output Current)
- THD: < 20%
- Programmable output current via Keystone supplied programming jig
- 90°C/194°F Maximum Case Temperature
- -40°C/–40°F to 50°C/122°F operating temperature
- Input Frequency: 50/60 Hz
- Class A Sound Rating
| Life (hrs) | 50,000 |
|---|---|
| Order Code | EAM-63 |
| Input Volts | 120-277 VAC |
| Output Current | 350-1050mA |
| Watts | 25 |
| Brand | Keystone |
| LED Type | Constant Current |
| Certifications | cETLus, Class P, cULus, FCC, Sound Rated: A, RoHS, EN61000-3-2 Harmonic Current Emissions Class C, FCC Part 15 Class B, CE EN61347-1, CE EN61347-2-13, UL cUL Class P, UL1310 Class 2 |
| Class | Non-Class 2 |
| Dimmable | Yes |
| Dimming Type | 0-10v |
| Mfg # | KTLD-25-UV-SC1050-56-VDIM-AQ7 |

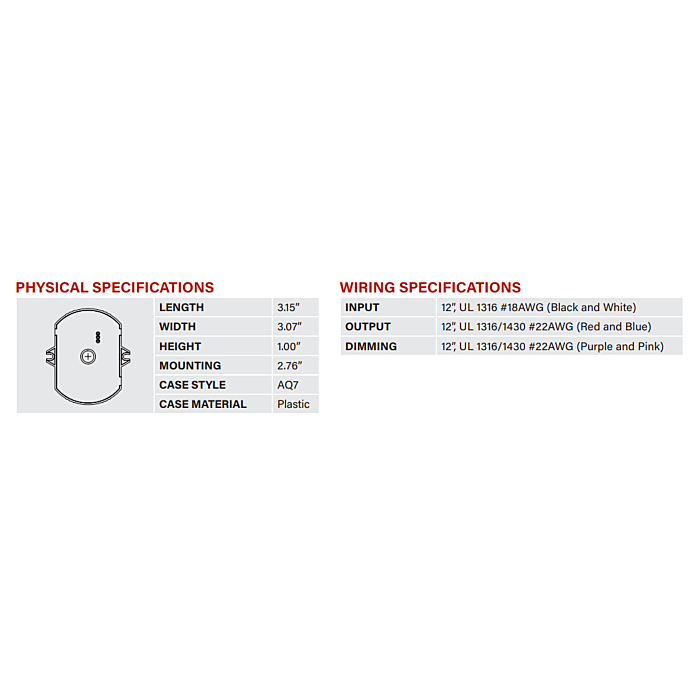

| Dimensions | 3.15 in. x 3.07 in. x 1 in. |
| Product Data Sheet | |
| Warranty | Manufacturer's 10 year |
| UPC | 843654151632 |
