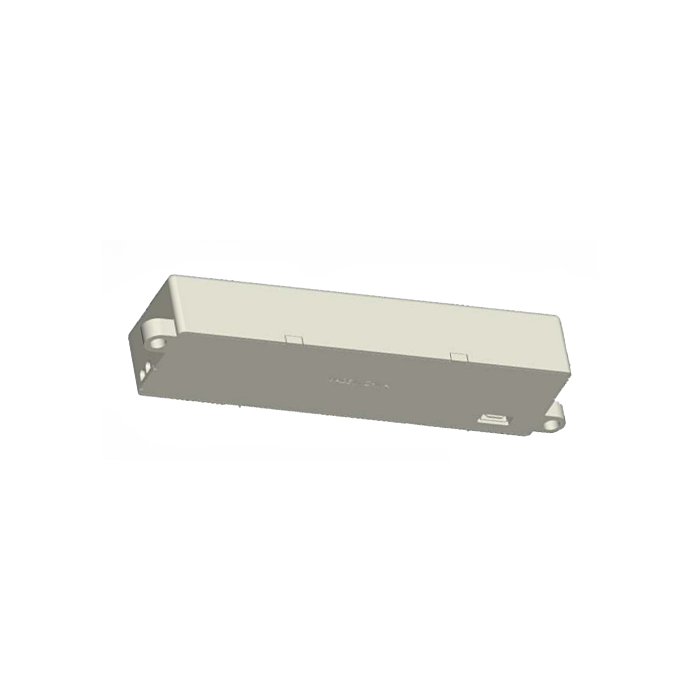

KTLD-20-UV-SC730-56-VDIM-AF4 /USB Keystone SmartCurrent- USB Programmable 20w Constant Power LED Driver
Special Price
$22.07
Regular Price
$27.58
SKU
17026
SmartCurrent- USB Programmable Constant Power Dimmable LED Driver: 20 Total Watts, 200 –730mA Output Current, 56 VDC Output Voltage, 120-277 VAC Input Voltage, Class 2, 0-10v Dimming Control, 1%-100% Dimming Range
KTLD-20-UV-SC730-56-VDIM-AF4 /USB Keystone SmartCurrent- USB Programmable 20w Constant Power LED Driver
- Built in USB-C Port for easy programing
- Meets FCC Part 15 (Class B) consumer limits
- Short circuit overload and open load protection
- Dimmable with 0 –10V dimmer (down to 1% at max. output current)
- THD: <20%
- –40°C/–40°F to 50°C/122°F operating temperature
- 90oC/194oF maximum case temperature
- Input frequency: 60 Hz
- Programmable output current via USB-C cable and an Android device (plus Keystone app) or PC (plus Keystone software)
- Class A Sound Rating
| Life (hrs) | 50,000 |
|---|---|
| Order Code | TER-37 |
| Input Volts | 120-277 VAC |
| Output Current | 200 –730mA |
| Watts | 20 |
| Brand | Keystone |
| LED Type | Constant Power |
| Certifications | cULus, FCC, RoHS, EN61000-3-2 Harmonic Current Emissions Class C, FCC Part 15 Class B, CE EN61347-1, CE EN61347-2-13, NLB |
| Class | Class 2 |
| Dimmable | Yes |
| Dimming Type | 0-10v |
| Mfg # | KTLD-20-UV-SC730-56-VDIM-AF4 /USB |

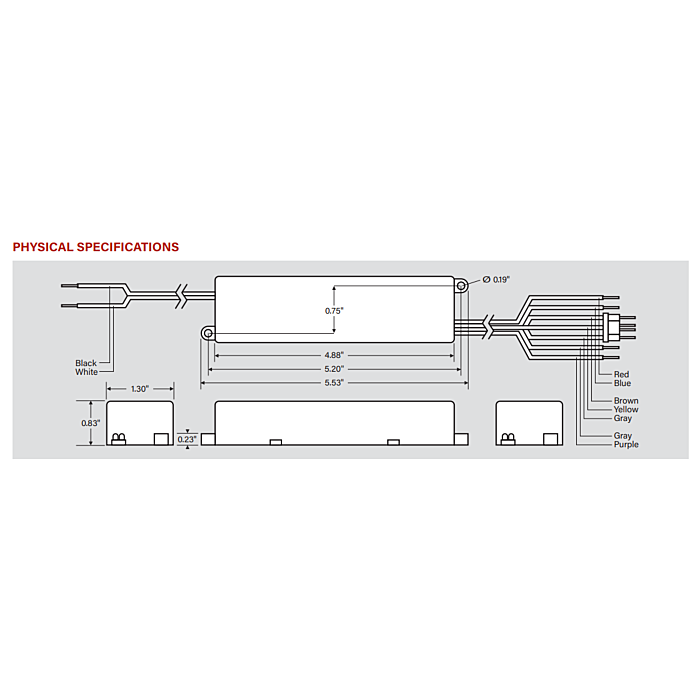

| Dimensions | 5.53 in. x 1.3 in. x 0.83 in. |
| Product Data Sheet | |
| Warranty | Manufacturer's 10 year |
| UPC | 843654140810 |
