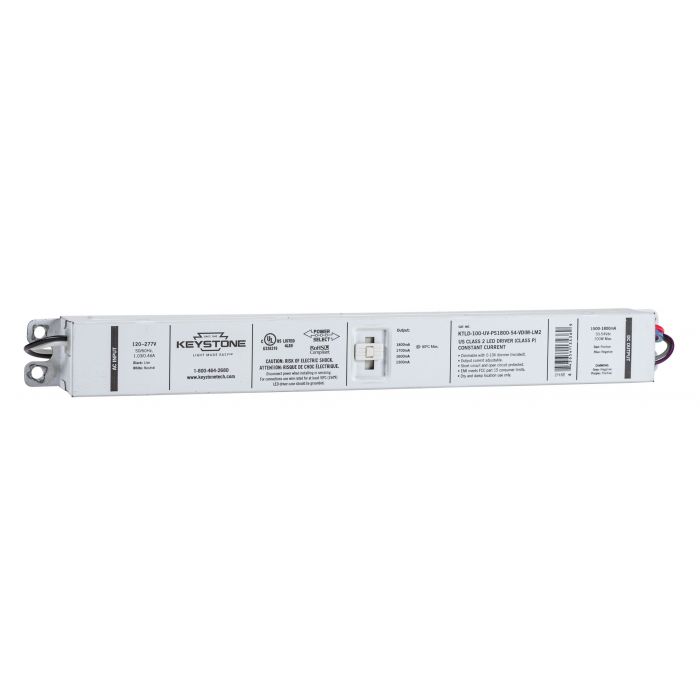

KTLD-100-UV-PS1800-54-VDIM-LM2 Keystone PowerSelect 100w Constant Current LED Driver
Special Price
$36.40
Regular Price
$45.50
SKU
17022
PowerSelect Switchable Constant Current Dimmable LED Driver: 100 Total Watts, 1500, 1600, 1700 or 1800mA Output Current, 54 VDC Output Voltage, 120-277 VAC Input Voltage, Class 2, 0-10v Dimming Control, 10%-100% Dimming Range
KTLD-100-UV-PS1800-54-VDIM-LM2 Keystone PowerSelect 100w Constant Current LED Driver
- Over Voltage Protection
- Over Current Protection
- Short Circuit Protection
- UL/cUL: UL 8750 pending, UL1310 Class 2
- CE: EN61347-1, EN61347-2-13
- FCC, 47CFR Part 15: ANSI C63.4:2009 Class B (Consumer Limit)
- EN61000-3-2: Harmonic Current Emissions Class C
- Sound Rating: Class A Sound Rating (per Energy Star V1.0
- 10-year warranty
| Life (hrs) | 50,000 |
|---|---|
| Order Code | MFU-23 |
| Input Volts | 120-277 VAC |
| Output Current | 1500, 1600, 1700 or 1800mA |
| Max Output Voltage | 54 |
| Watts | 100 |
| Brand | Keystone |
| LED Type | Constant Current |
| Certifications | cULus, FCC, Sound Rated: A, RoHS, EN61000-3-2 Harmonic Current Emissions Class C, FCC Part 15 Class B, CE EN61347-1, CE EN61347-2-13, UL1310 Class 2, Power Select |
| Class | Class 2 |
| Dimmable | Yes |
| Dimming Type | 0-10v |
| Mfg # | KTLD-100-UV-PS1800-54-VDIM-LM2 |
| Dimensions | 11.4 in. x 1.23 in. x 1.15 in. |
| Product Data Sheet | |
| Warranty | Manufacturer's 10 year |
| UPC | 843654134369 |
