EUM-150S210MT Inventronics 150W Constant Current LED Driver

SKU# 17137

$74.50
$59.60

Inventronics LED Drivers

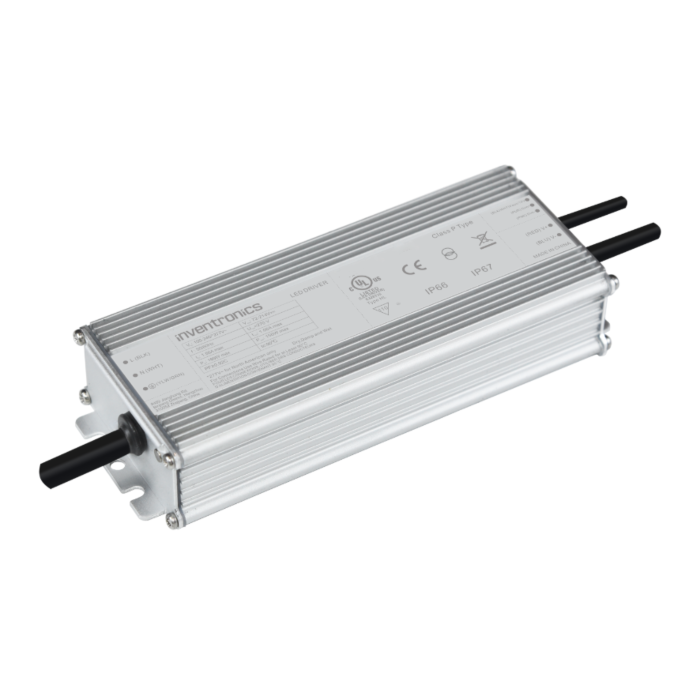

EUM-150S210MT Inventronics 150W Constant Current LED Driver

  • Full Power at Wide Output Current Range (Constant Power)

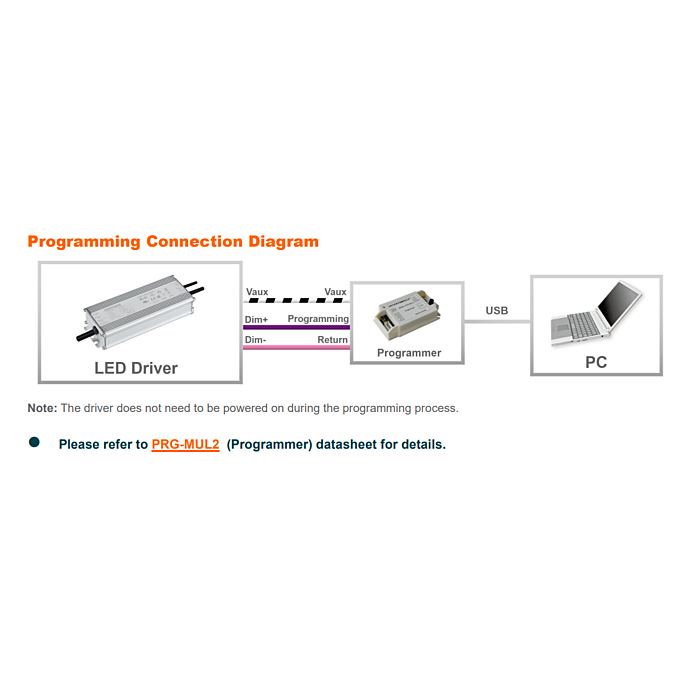

  • Adjustable Output Current (AOC) with Programmability
  • Isolated 0-10V/PWM/3-Timer-Modes Dimmable
  • INV Digital Dimming, UART Based Communication Protocol
  • Dim-to-Off with Standby Power ≤ 0.5 W
  • Always-on Auxiliary Power: 12Vdc, 250mA, 3W (Transient Peak Power up to 10W)
  • Output Lumen Compensation
  • End-of-Life Indicator
  • Input Surge Protection: DM 6kV, CM 10kV
  • All-Around Protection: IUVP, IOVP, OVP, SCP, OTP
  • IP66/IP67 and UL Dry/Damp/Wet Location
  • TYPE HL, for Use in a Class I, Division 2 Hazardous (Classified) Location
Life (hrs) 104,000
Order Code EUM-150S210MT
Input Volts 120-277 VAC
Output Current 1400 – 2100 mA (Default 1400 mA)
Max Output Voltage 107
Watts 150
Brand Inventronics
LED Type Constant Current
Certifications cULus, FCC, FCC Part 15, IC Rated, IP66, IP67, UL, UL 8750, Wet Location, NOM, Damp Location, Dry Location, Type HL, CE, ENEC, cRUus, CE EN61347-1, CE EN61347-2-13, UL cUL CAN/CSA-C22.2 No. 250.13, CCC, EN55015 Conducted emission Test & Radiated emission Test, EN61000-3-2 Harmonic current emissions, EN61000-3-3 Voltage fluctuations & flicker, ANSI C63.4 Class B, EN61000-4-8 Power Frequency Magnetic Field Test, EN61000-4-11 Voltage Dips, EN61547 Electromagnetic Immunity Requirements Applies To Lighting Equipment, EAC, CB, TP TC 004, TP TC 020, EN61000-4-6 Conducted Radio Frequency Disturbances Test-CS, EN61000-4-3 Radio-Frequency Electromagnetic Field Susceptibility Test-RS, EN61000-4-4 Electrical Fast Transient / Burst-EFT, IEC61347-1, IEC61347-2-13
Class Class 1
Dimmable Yes
Dimming Type 0-10V/PWM/3-Timer
Mfg # EUM-150S210MT
Dimensions 6.34 in. x 2.36 in. x 1.44 in.
Product Data Sheet
Warranty 5 Year Warranty
