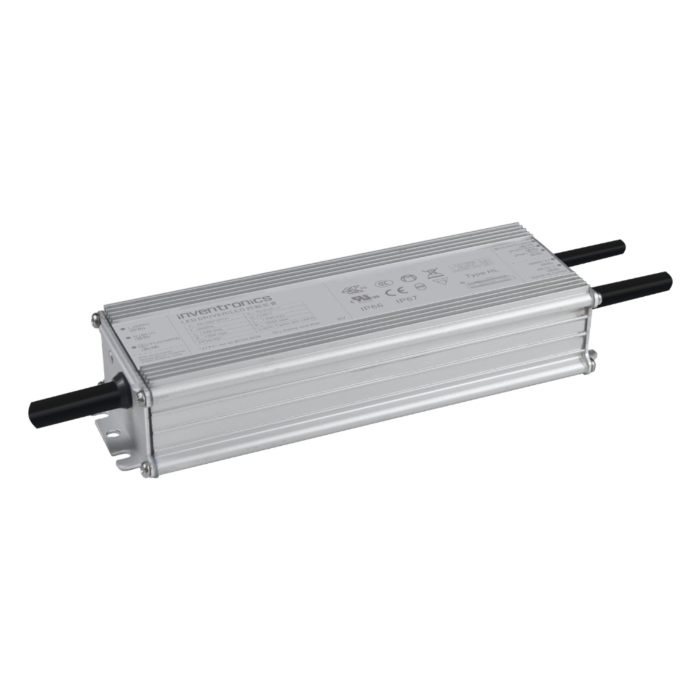

EUM-150S150DG Inventronics 150W Constant Current LED Driver
Special Price
$36.59
Regular Price
$45.73
SKU
17131
Programmable, Constant Current, Dimmable LED Driver: 150 Total Watts, 1050 – 1500 mA (Default 1050 mA) Output Current, 143 VDC Output Voltage, 90 ~ 305 Vac, 127 ~ 300 Vdc Input Voltage, Class 1, 1-5V/1-10V/10V PWM/3-Timer Dimming Control
EUM-150S150DG Inventronics 150W Constant Current LED Driver
- Compact Metal Case with Excellent Thermal Performance
- Full Power at Wide Output Current Range (Constant Power)

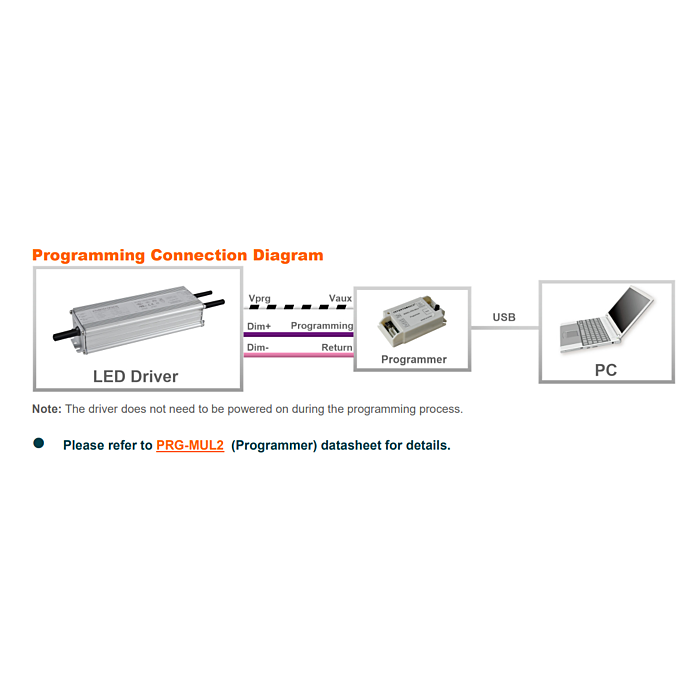

- Adjustable Output Current (AOC) with Programmability
- Isolated 1-5V/1-10V/10V PWM/3-Timer-Modes Dimmable
- Output Lumen Compensation
- Input Surge Protection: DM 6kV, CM 10kV
- All-Around Protection: OVP, SCP, OTP
- IP66 / IP67 and UL Dry / Damp / Wet Location
- SELV Output
- TYPE HL, for use in a Class I, Division 2 hazardous (Classified) location
| Life (hrs) | 106,000 |
|---|---|
| Order Code | EUM-150S150DG |
| Input Volts | 90 ~ 305 Vac, 127 ~ 300 Vdc |
| Output Current | 1050 – 1500 mA (Default 1050 mA) |
| Max Output Voltage | 143 |
| Watts | 150 |
| Brand | Inventronics |
| LED Type | Constant Current |
| Certifications | cULus, FCC, FCC Part 15, IC Rated, IP66, IP67, UL, UL 8750, Wet Location, NOM, Damp Location, Dry Location, Type HL, CE, ENEC, cRUus, CE EN61347-1, CE EN61347-2-13, UL cUL CAN/CSA-C22.2 No. 250.13, SELV, CCC, EN55015 Conducted emission Test & Radiated emission Test, EN61000-3-2 Harmonic current emissions, EN61000-3-3 Voltage fluctuations & flicker, ANSI C63.4 Class B, EN61000-4-8 Power Frequency Magnetic Field Test, EN61000-4-11 Voltage Dips, EN61547 Electromagnetic Immunity Requirements Applies To Lighting Equipment, EAC, CB, TP TC 004, TP TC 020, EN61000-4-6 Conducted Radio Frequency Disturbances Test-CS, EN61000-4-3 Radio-Frequency Electromagnetic Field Susceptibility Test-RS, EN61000-4-4 Electrical Fast Transient / Burst-EFT, IEC61347-1, IEC61347-2-13 |
| Class | Class 1 |
| Dimmable | Yes |
| Dimming Type | 1-5V/1-10V/10V PWM/3-Timer |
| Mfg # | EUM-150S150DG |

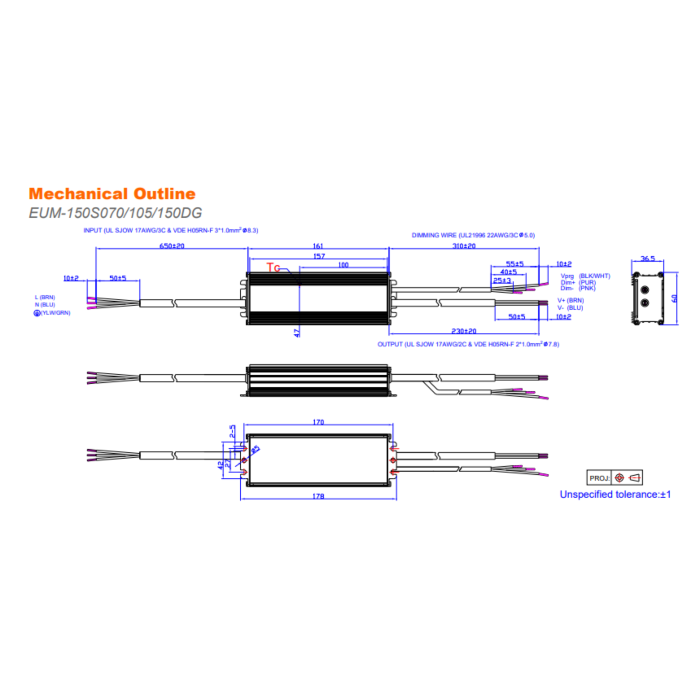

| Dimensions | 6.34 in. x 2.36 in. x 1.44 in. |
| Product Data Sheet | |
| Warranty | 5 Year Warranty |
