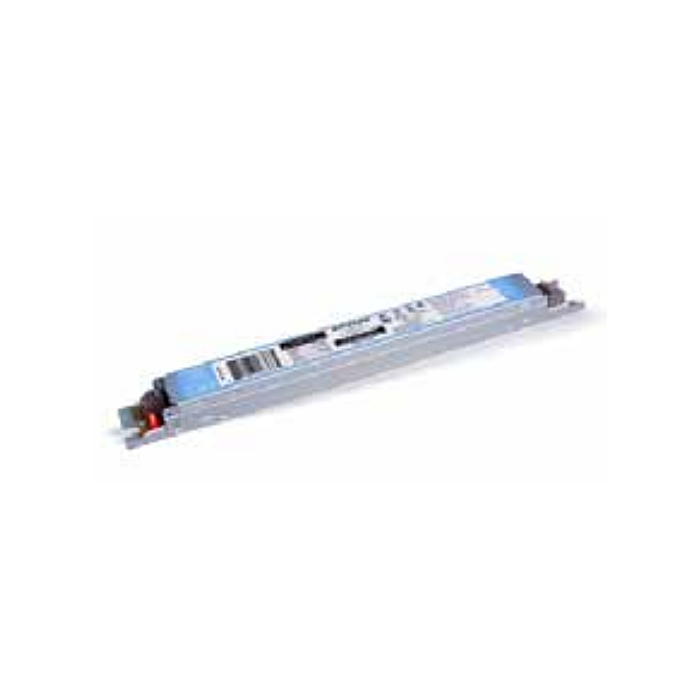

CI022C045V048CDX1 Advance CertaDrive X 22w Constant Current LED Driver
Special Price
$17.48
Regular Price
$21.85
SKU
16127
Xitanium Programmable Constant Current Dimmable LED Driver: 50 Total Watts, 0.1 - 1.4A Output Current, 48 VDC Output Voltage, 120-277 VAC Input Voltage, Class 2, 0-10v, Analog Dimming Control, 1%-100% Dimming Range
XI050C140V048BPT1 Advance Xitanium 50w Constant Current LED Driver Driver
- 1% min. dim level, 0-10V Dimming
- Helps to maximize energy savings and allows application specific light levels
| Life (hrs) | 50,000 |
|---|---|
| Order Code | 929002721913 |
| Input Volts | 120-277 VAC |
| Output Current | 0.40/ 0.45 |
| Max Output Voltage | 48 |
| Watts | 22 |
| Brand | Advance |
| LED Type | Constant Current |
| Certifications | Class P, cUL, Damp Rated, UL, UL 8750, Dry Location, FCC Title 47 Part 15 Class A |
| Class | Class 2 |
| Dimmable | Yes |
| Dimming Type | 0-10v, Analog |
| Mfg # | 929002721913 |

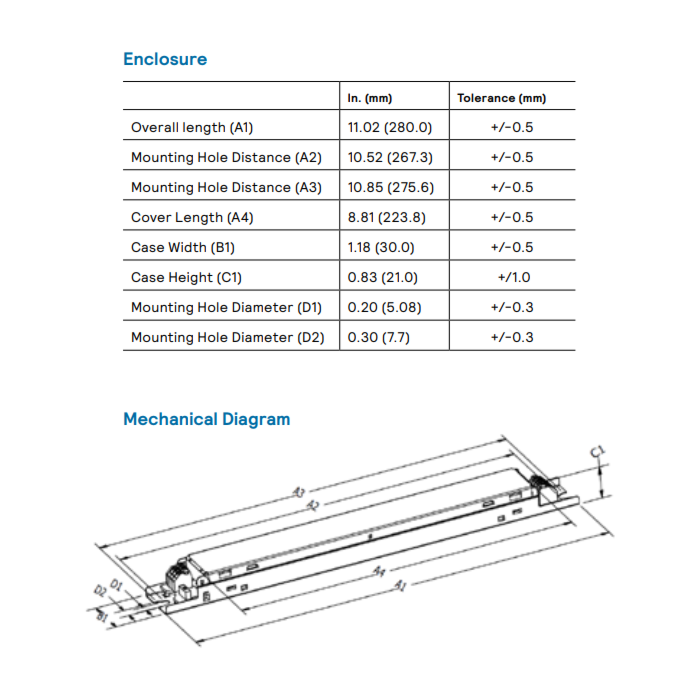

| Dimensions | 11.02 in. x 1.18 in.x 0.83 in. |
| Product Data Sheet | |
| Warranty | Manufacturers 5 Year |
| UPC | 781087166543 |
