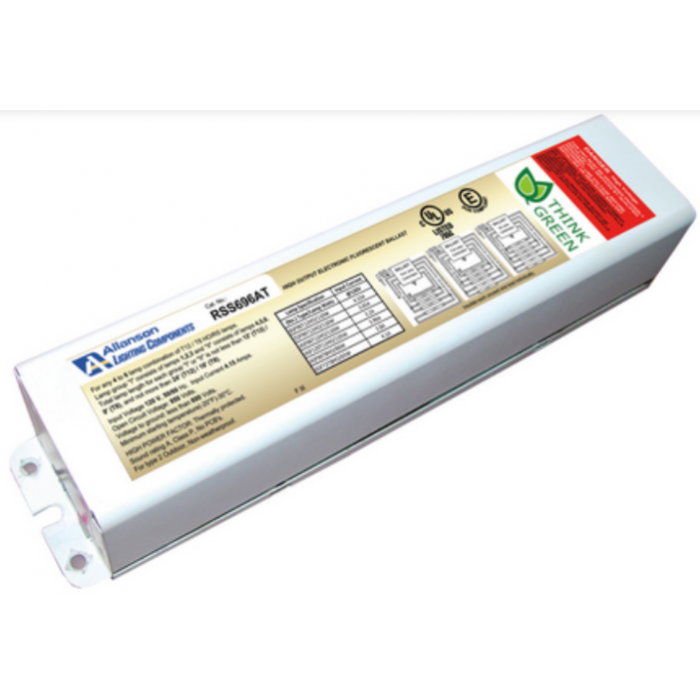

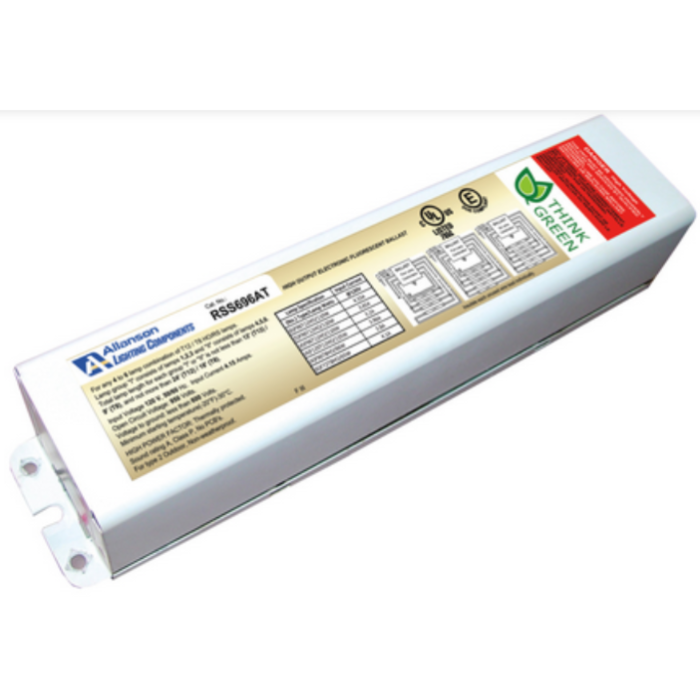

Allanson RSS696AT-120-277 Electronic Sign Ballast

Special Price $105.44 Regular Price $158.16
Electronic Sign Ballast (Magnetic Wiring) - 4 - 6 Lamps, 24 - 48 feet, 120-277 Voltage

Allanson RSS696AT Electronic Fluorescent Sign Ballast

  • Five RSS Ballasts replace 15 existing models for less inventory and increased savings
  • Rapid cold weather start at -30°C
  • Meets FCC Rating, low RFI and EMI ensures no interference issues
  • Meets ANSI C82.11 Standards
  • Less than 8% THD for installation con!dence
  • Quiet operation in all installation conditions, sound rated ‘A’
  • Thermal protection
  • Increased lamp life
  • New smaller pro!le allows for greater adaptability for low pro!le signage menu board applications
  • EQUIVALENT - Keystone KTSB-E-2048-46-UV-S. Smart Wire ballast. Wires just like this Allanson version and old magnetic ballasts
  • More Information
    Order Code RSS696AT
    Input Volts 120-277V
    Brand Allanson
    Mfg # RSS696AT
    Lamps For use with T12 HO, T8 HO and Slimline Lamps
    # of Lamps 4 Lamps, 5 Lamps, 6 Lamps
    Min Total Length (ft) 24
    Max Total Length (ft) 48
    Product Data Sheet
    Starting Temperature -20ºF, -30ºC
    Certifications CSA, Sound Rated: A, Title24, UL
    Dimensions 16 1/2" (L) x 3 3/16" (W) x 2 5/8" (H)
    Case Size 1
    Warranty 4 Years
