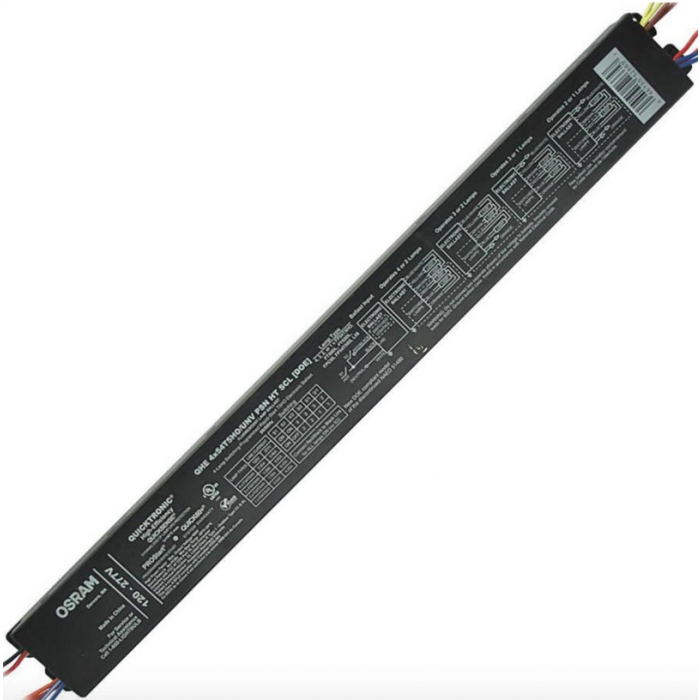

Sylvania Quicktronic QHE4X54T5HO/UNV PSN-HT-SCL (51480 OR 52665) High Efficiency T5 HO Ballast

Special Price $72.88 Regular Price $89.00

SKU

6500

Sylvania Quicktronic High Efficiency T8 Ballast Lamps: (4) F54T5HO, (4) FT50, (4) FT55 -Input:120-277V -Starting: Programmed Rapid Start

DISCONTINUED by Osram Sylvania. SEE the two ballasts below as possible cross reference equivalents:

Sylvania QHE4X54T5HO/UNV PSN-HT-SCL (51480 or 52665) T5HO High Efficiency Fluorescent Ballast

High Efficiency Systems over 90% efficient

90°C maximum case temp.

Universal voltage (120-277V)

100% ballast factor

QUICKSENSE ballast technology (end-of-lamp-life sensing)

PROStart programmed rapid start

UL type CC rated

-20°F (-29C) min. starting temp.

Operates at >42 kHz to reduce potential interference with infrared control systems

RoHS compliant

Lead-free solder, printed circuit board and manufacturing process

More Information
Order Code	QHE4X54T5HO/UNV PSN-HT-SCL
Input Volts	120-277V
Brand	Sylvania Quicktronic
Mfg #	51480
# of Lamps	4 Lamps
Product Data Sheet	QHE4X54T5HO-PSN-HT-SCL
Certifications	CSA, FCC Part 18 (Class A), NEMA Premium, Sound Rated: A, UL
Equivalents	Universal B454PUNVHE-A
Start Method	Programmed Start
Starting Temperature	-20ºF, -29ºC
Lamps	(4) F54T5HO, (4) FT50, (4) FT55
Dimensions	16.73" L x 1.68" W x 1.18" H
Case Size	10
Warranty	5 Year Sylvania Limited Warranty
UPC	46135514807
