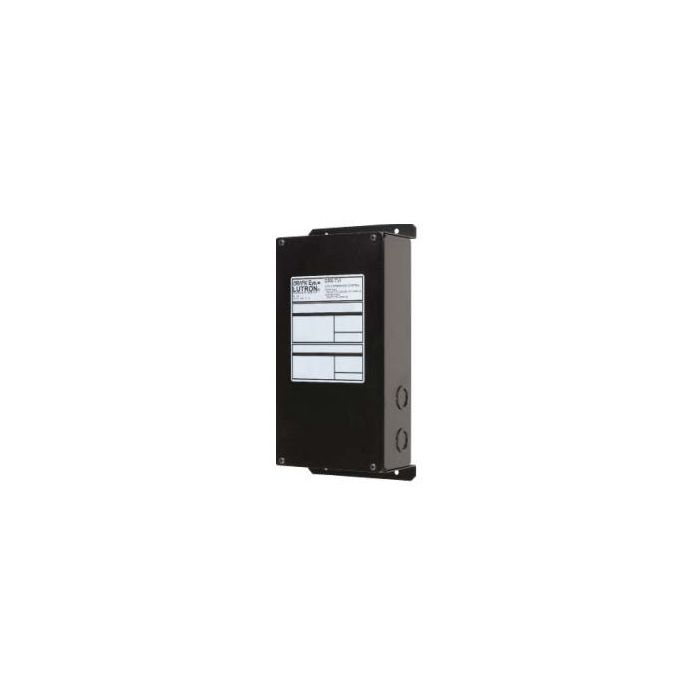

Lutron GRX-TVI Grafik Eye 0-10V Power Module
SKU
6893
GRAFIK Eye 0-10V Dimming Power Module - 100-277V
Lutron Grafik Eye GRX-TVI Grafik Eye 0-10V Power Module
- 100-277 V~ forward, reverse, and center phase control input capability
- Provides 0-10 V- control and switching capabilities to switch and dim current sourcing fluorescent ballasts and LED drivers.
- Switches and dims current sourcing 0-10 V- electronic dimming ballasts / drivers powered by 100-277 V~. Switches up to 16 A of electronic capacitive ballasts / drivers.
- Switches motors up to 1/2 HP @ 100-120 V~, 1 ½ HP @ 200-277 V~ and 5 A @ 230 V~ CE.
- Up to five Ten Volt Interfaces may be connected to one Control Unit zone. This allows one zone to control up to five 16 A circuits of Electronic Dimming Ballasts / Drivers or five motors
- Provides 100-277 V~ power to loads.
- Requires 100-277 V~ power for internal operations.
| Brand | Lutron |
|---|---|
| Dimensions | 6.1" (W) x 11.75" (H) x 3.3" (D) |
| Order Code | GRX-TVI |
| Product Data Sheet | |
| UPC | 27557376150 |
| Warranty | 5 Years |
| Certifications | UL |
