GE GEM70MLTLA3D-5 (86847) QUAD 70 Watt Pulse Metal Halide Ballast Kit

Special Price $57.20 Regular Price $70.56

SKU

BD12-GEM70MLTLA3D-5

70 Watt Metal Halide Ballast - Lamps: 70 Watt M98/M143 Metal Halide -Input:120/208/240/277V -Starting: Probe Start

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

GE GEM70MLTLA3D-5 70 Watt Metal Halide Ballast

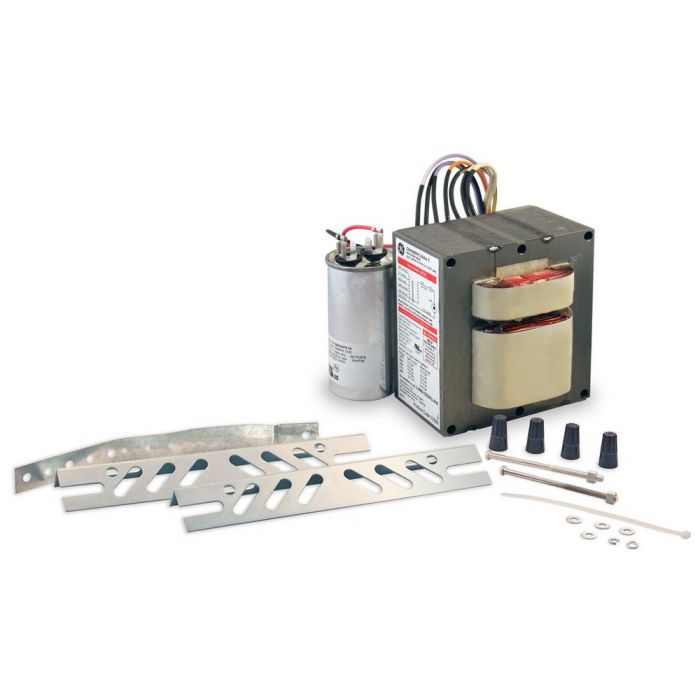

Kit includes: Appropriate core & coil with color coded leads, a properly rated capacitorand ignitor (if required) and all other components required for ballast replacement

ANSI Designation: M98/M143

Line Voltage: 120/208/240/277V

Regulation: 5%

Frequency: 60 Hz

Recommended Fuse (A): 4/3/3//2

Circuit Type: HX-HPF

Insulation Class: 180ºC

Capacitor Value: 8 MF

Capacitor Voltage Rating: 280 V

Capacitor Temperature Rating: 100ºC

Agency Certification: UL, cUL

Maximum Distance to Lamp: 5 FT

5 Year Warranty

More Information

More Information
Order Code	GEM70MLTLA3D-5
Input Volts	120/208/240/277V
Start Method	Probe Start
Watts	70
ANSI	M98/M143
Brand	GE
Mfg #	86847
Product Data Sheet	GEM70MLTLA3D-5
Lamps	70 Watt M98/M143 Metal Halide
Dimensions	4"(L) x 2.8"(W)
Case Size	6
Warranty	5 Year GE HID Metal Halide Warranty
UPC	43168868471
