Advance 71A8970-001D 200 Watt High Pressure Sodium Ballast Kit

Special Price $161.91 Regular Price $242.86

SKU

LD-71A8970-001D

200 Watt High Pressure Sodium Ballast - Lamps: 200 Watt S66 High Pressure Sodium Ballast -Input:120/208/240/277V -Starting: Pulse Start

Advance 71A8970-001D 200 Watt High Pressure Sodium Ballast

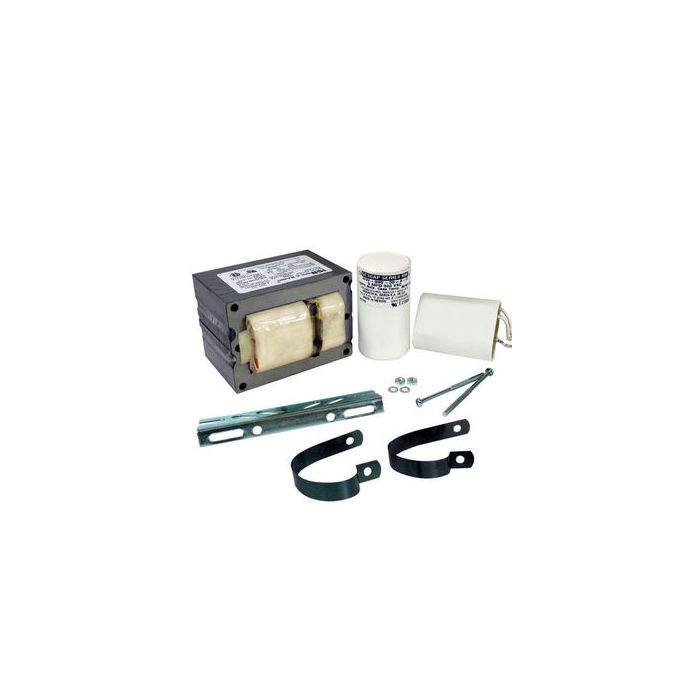

Kit includes: Ballast,Capacitor, Bracket Kit, and Ignitor

ANSI Designation: S66

Line Voltage: 120/208/240/277

Regulation: 10%

Frequency: 60 Hz

Recommended Fuse (A): 6/4/3/3

Circuit Type: CWA

Insulation Class: 180ºC

Capacitor Value: 28

Capacitor Voltage Rating: 280 V

Capacitor Temperature Rating: 105ºC

Maximum Distance to Lamp: 2 FT

Agency Certification: RU, CSA, UL

2 Year Warranty

More Information
Order Code	71A8970001D
Input Volts	120/208/240/277V
Watts	200
ANSI	S66
Brand	Advance
Mfg #	71A8970001D

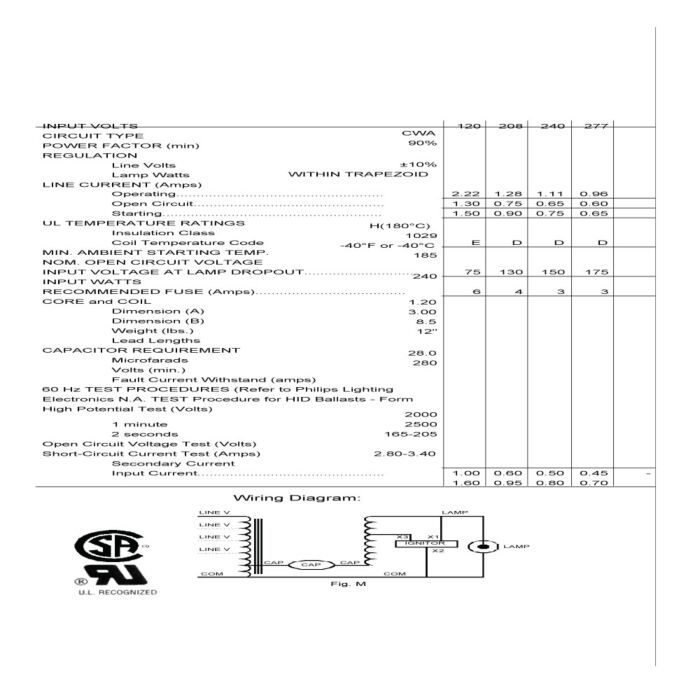

Product Data Sheet	71A8970-001D Advance HID Brochure
Equivalents	Advance: 71A5590500D, 71A5590500DML
Certifications	cUL, UL
Lamps	200 Watt S66 High Pressure Sodium Ballast

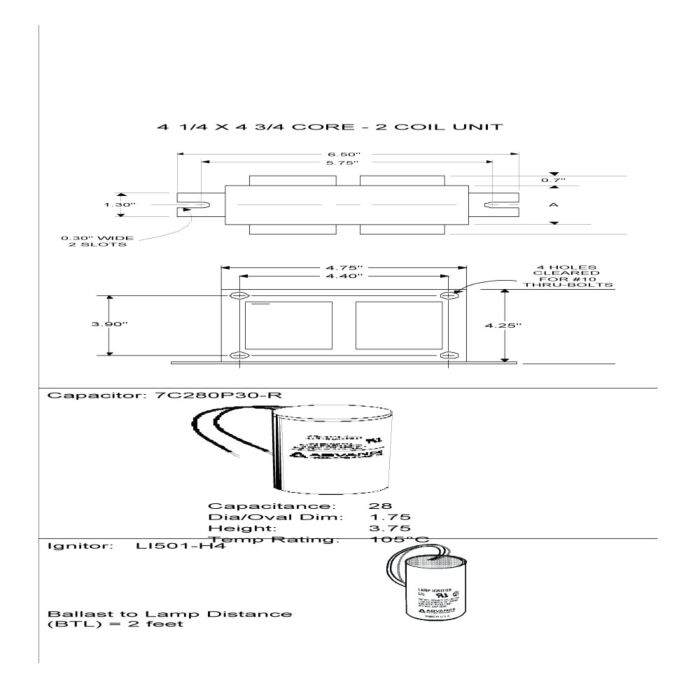

Dimensions	4.75"(L) x 3"(W) x 4.4"(H)
Case Size	4
Warranty	2 Year Advance Warranty
UPC	781087897010
