Advance 71A8172-001D 150 Watt High Pressure Sodium Ballast Kit
Special Price
$182.15
Regular Price
$228.00
SKU
1044
150 Watt High Pressure Sodium Ballast - Lamps: 150 Watt S55 High Pressure Sodium Ballast -Input:120/208/240/277V -Starting: Pulse Start
Advance 71A8172-001D 150 Watt High Pressure Sodium Ballast

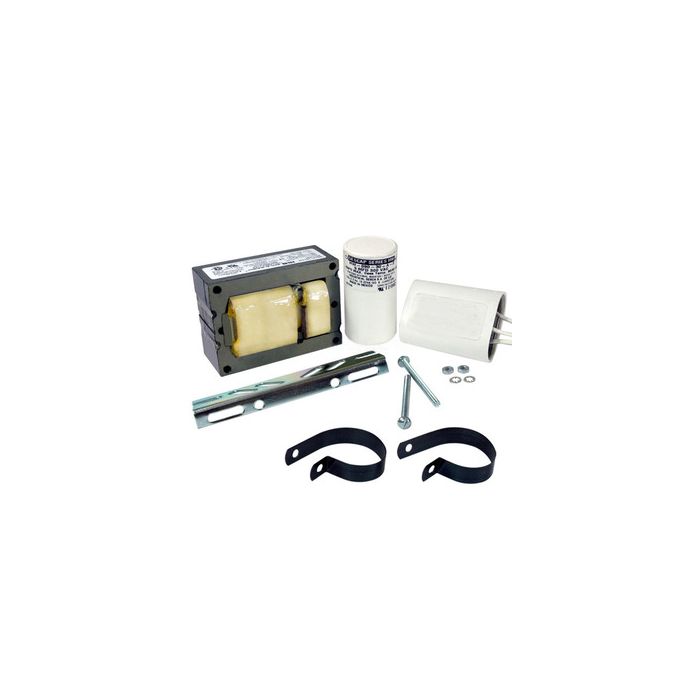

- Kit includes: Ballast,Capacitor, Bracket Kit, and Ignitor
- ANSI Designation: S55
- Line Voltage: 120/208/240/277
- Regulation: 5%
- Frequency: 60 Hz
- Recommended Fuse (A): 10/5/5/4
- Circuit Type: HX-HPF
- Insulation Class: 180ºC
- Capacitor Value: 14
- Capacitor Voltage Rating: 280 V
- Capacitor Temperature Rating: 105ºC
- Maximum Distance to Lamp: 2 FT
- Agency Certification: RU, CSA, UL
- 2 Year Warranty
| Order Code | 71A8172001D |
|---|---|
| Input Volts | 120/208/240/277V |
| Watts | 150 |
| ANSI | S55 |
| Brand | Advance |
| Mfg # | 71A8172001D |

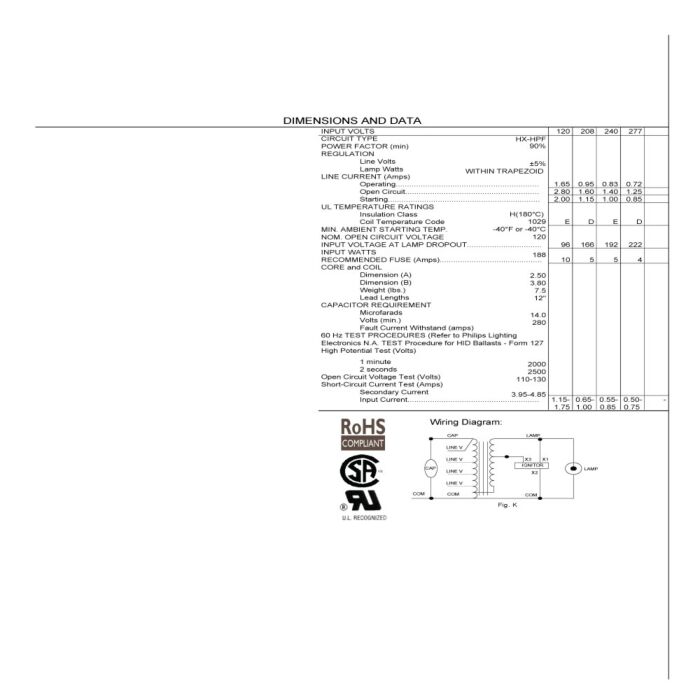

| Product Data Sheet | |
| Lamps | 150 Watt S55 High Pressure Sodium Ballast |

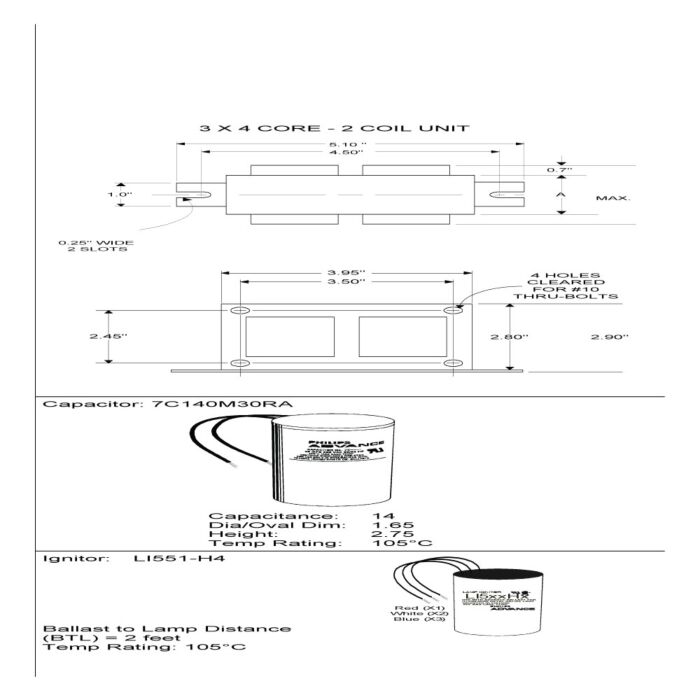

| Dimensions | 3.95"(L) x 2.45"(W) x 2.9"(H) |
| Case Size | 4 |
| Warranty | 2 Year Advance Warranty |
| UPC | 781087817216 |
