Advance 71A7971-001D 70 Watt High Pressure Sodium Ballast Kit

Special Price $152.86 Regular Price $198.72

SKU

7579

70 Watt High Pressure Sodium Ballast - Lamps: 70 Watt S62 High Pressure Sodium Ballast -Input:120/208/240/277V -Starting: Pulse Start

Advance 71A7971-001D 70 Watt High Pressure Sodium Ballast

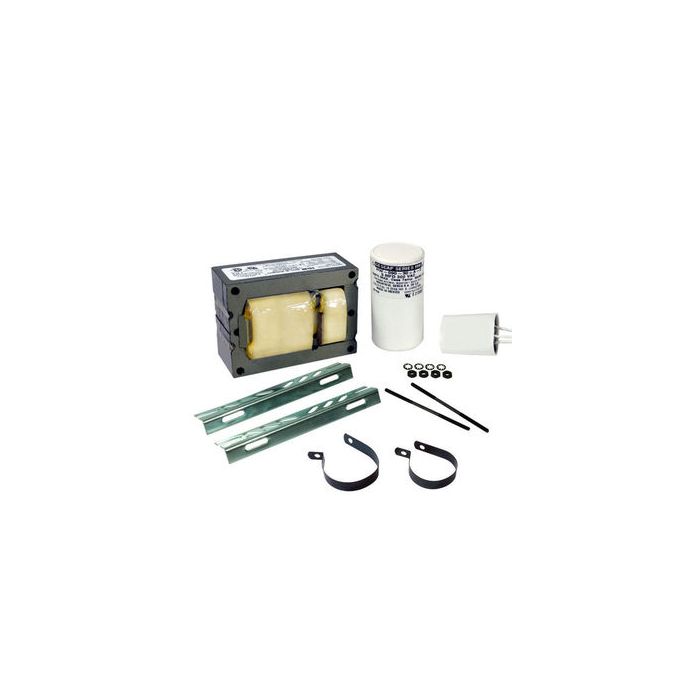

Kit includes: Ballast,Capacitor, Bracket Kit, and Ignitor

ANSI Designation: S62

Line Voltage: 120/208/240/277

Regulation: 5%

Frequency: 60 Hz

Recommended Fuse (A): 5/3/2/2

Circuit Type: HX-HPF

Insulation Class: 180ºC

Capacitor Value: 5

Capacitor Voltage Rating: 300 V

Capacitor Temperature Rating: 105ºC

Maximum Distance to Lamp: 2 FT

Agency Certification: RU, CSA, UL

2 Year Warranty

More Information
Order Code	71A7971001D
Input Volts	120/208/240/277V
Watts	70
ANSI	S62
Brand	Advance
Mfg #	71A7971001D

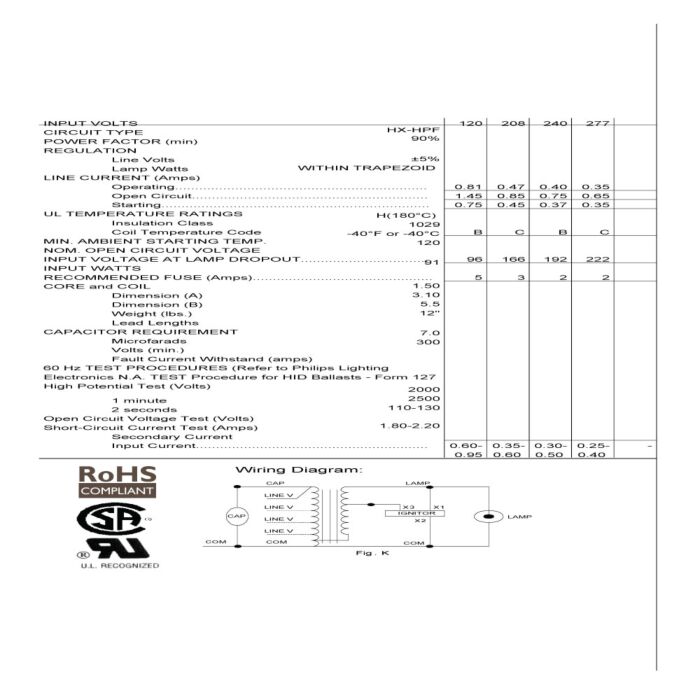

Product Data Sheet	71A7971-001D Advance HID Brochure
Lamps	70 Watt S62 High Pressure Sodium Ballast

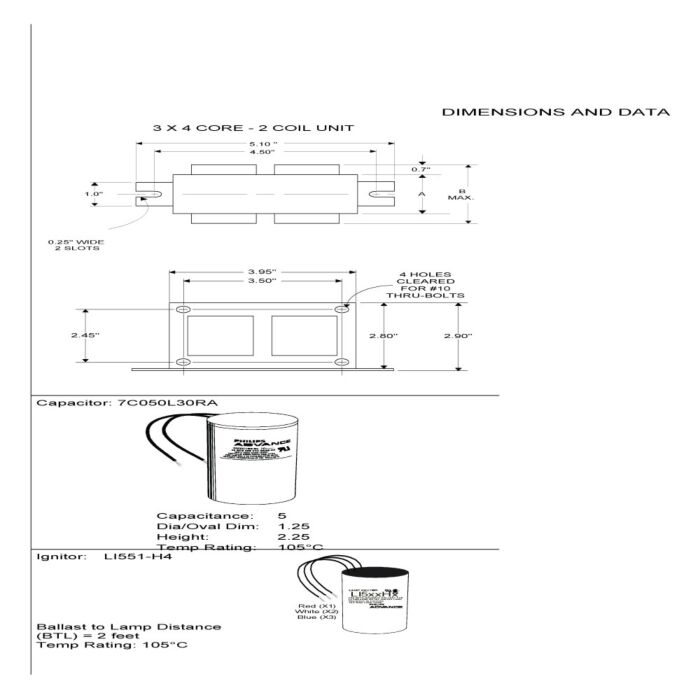

Dimensions	3.95"(L) x 3.1"(W) x 2.9"(H)
Case Size	4
Warranty	2 Year Advance Warranty
UPC	781087797112
