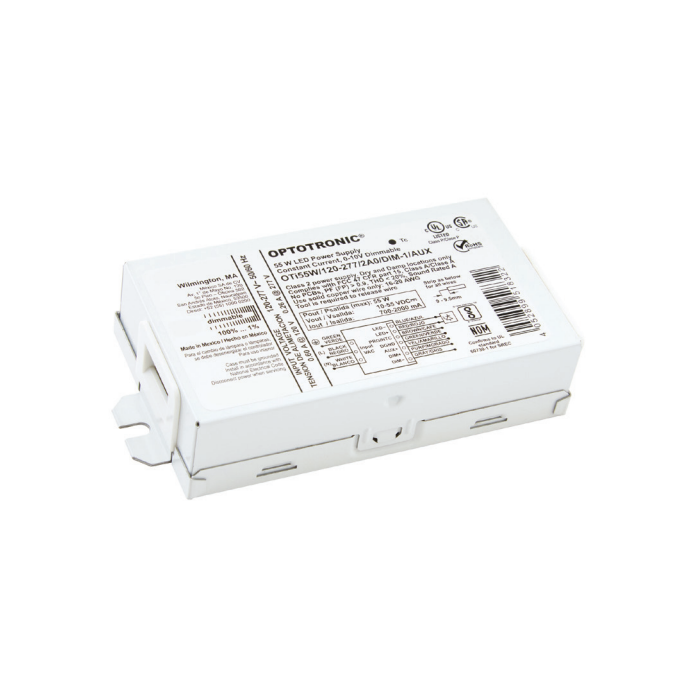

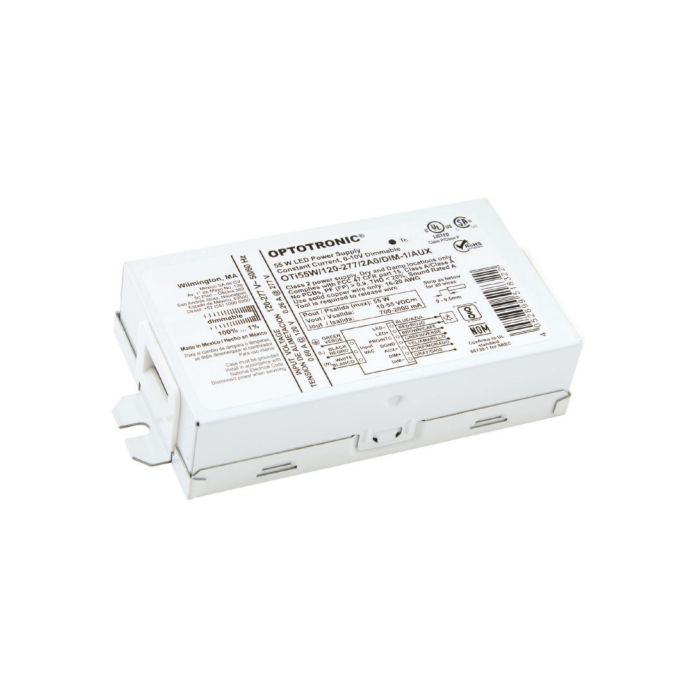

57358 / 274A1P eldoLED OTI55W1202772A0DIM1JAUX OPTOTRONIC Indoor Compact 55w Constant Current LED Driver
Special Price
$33.78
Regular Price
$42.23
SKU
16673
OPTOTRONIC Indoor Compact Programmable Constant Current Dimmable LED Driver: 55 Total Watts, 700-2000mA (Default 1000mA) Output Current, 55 VDC Output Voltage, 120-277 VAC Input Voltage, Non-Class 2, 0-10v Dimming Control, 1%-100% Dimming Range
57358 / 274A1P eldoLED OTI55W1202772A0DIM1JAUX OPTOTRONIC Indoor Compact 55w Constant Current LED Driver
- 700-2000mA (Default 1000mA) Programmable LED Driver
- Architectural-grade features include:True 1% dimming, Synchronized ON/OFF and dimming control, DIM to OFF, Dimming interface protection
- Custom programmable with 1mA resolution to perfectly match LED load and maximize performance
- Integrated OEM programmable features include: Constant lumen maintenance, End-of-life indication, LED thermal protection, Soft start
- UL Class 2 output for safe operation
| Life (hrs) | 50,000 |
|---|---|
| Order Code | 274A1P |
| Input Volts | 120-277 VAC |
| Output Current | 700-2000mA (Default 1000mA) |
| Watts | 55 |
| Brand | eldoLED |
| LED Type | Constant Current |
| Certifications | IP20, UL, RoHS, UL damp & dry |
| Class | Non-Class 2 |
| Dimmable | Yes |
| Dimming Type | 0-10v |
| Mfg # | 57358 |

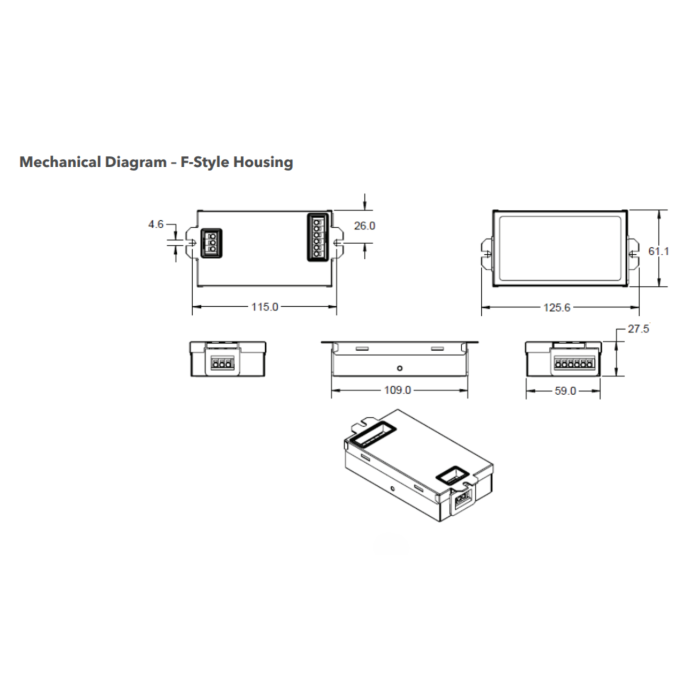

| Dimensions | 4.2 in. x 2.4 in. x 1.2 in. |
| Product Data Sheet | |
| Warranty | Manufacturers 5 Year |
| UPC | 4052899518346 |
