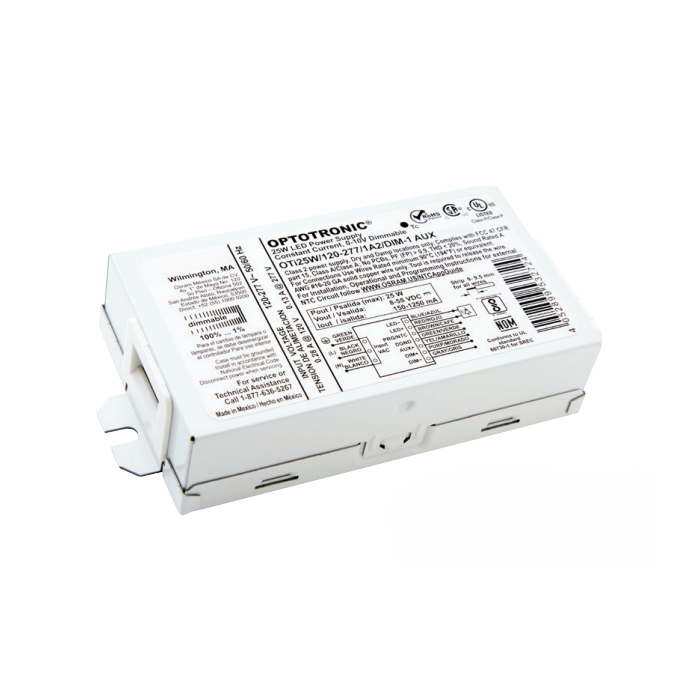

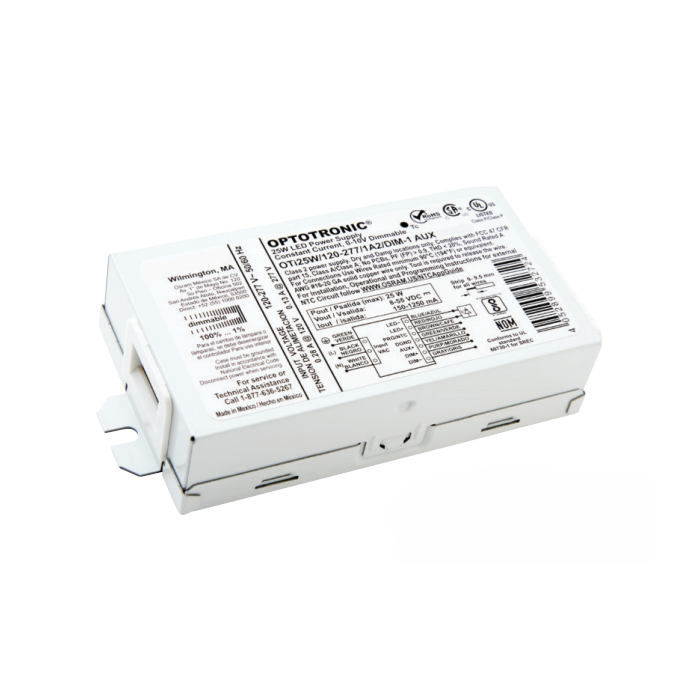

57350 / 274A1K eldoLED OTI25W1202771A2DIM1JAUX 25w Constant Current LED Driver - *DISCONTINUED*

Mfg # 57350 Item # 16670 Order Code 274A1K

OPTOTRONIC Indoor Compact Programmable Constant Current Dimmable LED Driver: 25 Total Watts, 150-1250mA (Default 500mA) Output Current, 55 VDC Output Voltage, 120-277 VAC Input Voltage, Non-Class 2, 0-10v Dimming Control, 1%-100% Dimming Range

$42.44
$33.95

eldoLED LED Drivers

57350 / 274A1K eldoLED OTI25W1202771A2DIM1JAUX OPTOTRONIC Indoor Compact 25w Constant Current LED Driver

  • 150-1250mA (Default 500mA) Programmable LED Driver
  • Highly efficient constant current drivers dim to 1% with unique architectural grade features—such as Dim to Off, Vaux Output and Synchronized ON/OFF Timing—to meet the tough demands of your lighting projects
  • Custom programmable with 1mA resolution to perfectly match LED load and maximize performance
  • UL Class 2 output for safe operation
  • Perfect for downlights, in-grade fixtures, recessed troffer and wall wash lighting for your office and retail applications.
Life (hrs) 50,000
Order Code 274A1K
Input Volts 120-277 VAC
Output Current 150-1250mA (Default 500mA)
Watts 25
Brand eldoLED
LED Type Constant Current
Certifications UL, RoHS, UL damp & dry
Class Non-Class 2
Dimmable Yes
Dimming Type 0-10v
Mfg # 57350

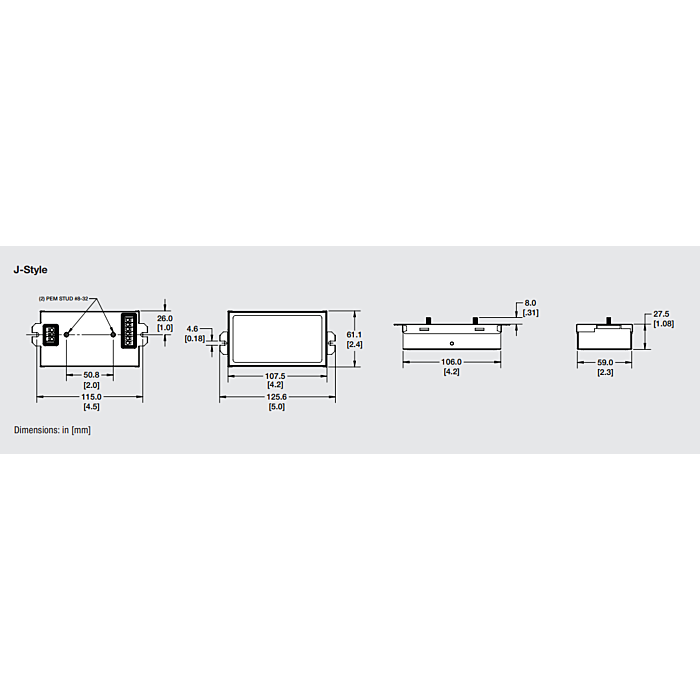

Dimensions 4.2 in. x 2.4 in. x 1.2 in.
Product Data Sheet
Warranty Manufacturers 5 Year
UPC 4052899532748
