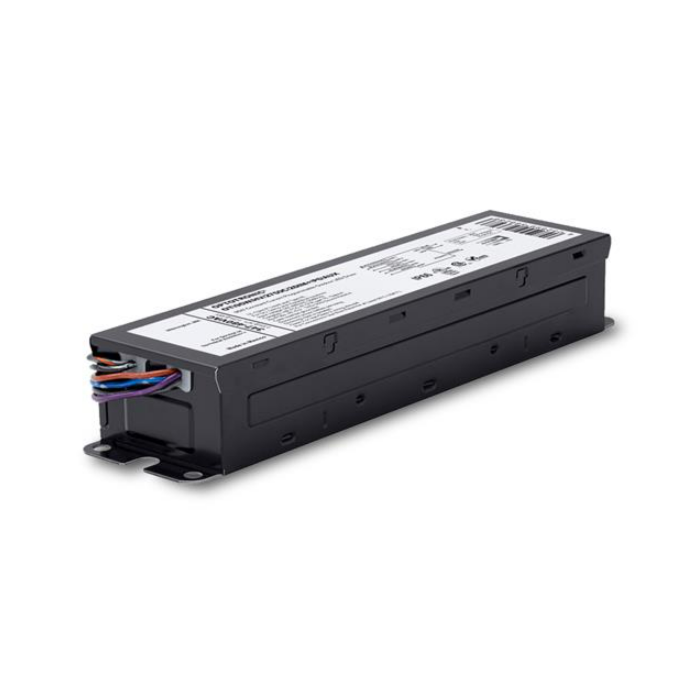

57509 / 2743XJ eldoLED OTI95WUNV2750C2DIMP6 OPTOTRONIC Outdoor & Industrial 95w Constant Current LED Driver

SKU# 16681

$63.05
$50.44

eldoLED LED Drivers

57509 / 2743XJ eldoLED OTI95WUNV2750C2DIMP6 OPTOTRONIC Outdoor & Industrial 95w Constant Current LED Driver

  • 700 - 2750mA (Default 2700mA) Programmable LED Driver
  • OEM programmable with 1mA resolution to perfectly match LED load and maximize performance
  • Specification grade dimming down to 10% on 0-10V (1% for 95, 190W), DALI and D4i control drivers.
  • Integrated OEM programmable features include, AstroDIM, Constant lumen maintenance, LED thermal protection, AUX output
  • IP66 Rated
Life (hrs) 50,000
Order Code 2743XJ
Input Volts 120-277 VAC
Output Current 700 - 2750mA (Default 2700mA)
Max Output Voltage 54
Watts 95
Brand eldoLED
LED Type Constant Current
Certifications UL, RoHS, Type HL, UL damp & dry
Class Class 2
Dimmable Yes
Dimming Type 0-10v
Mfg # 57509

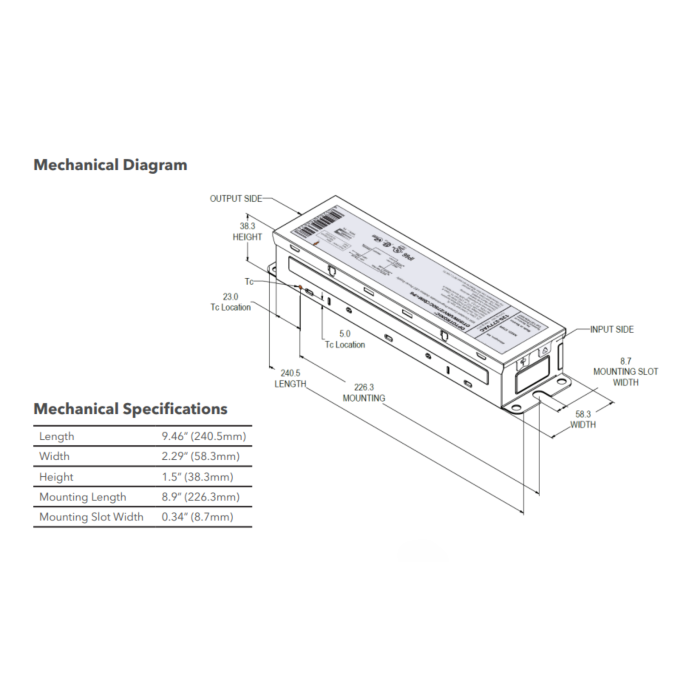

Dimensions 9.46 in. x 2.29 in. x 1.5 in.
Product Data Sheet
Warranty Manufacturers 5 Year
UPC 4052899566248
