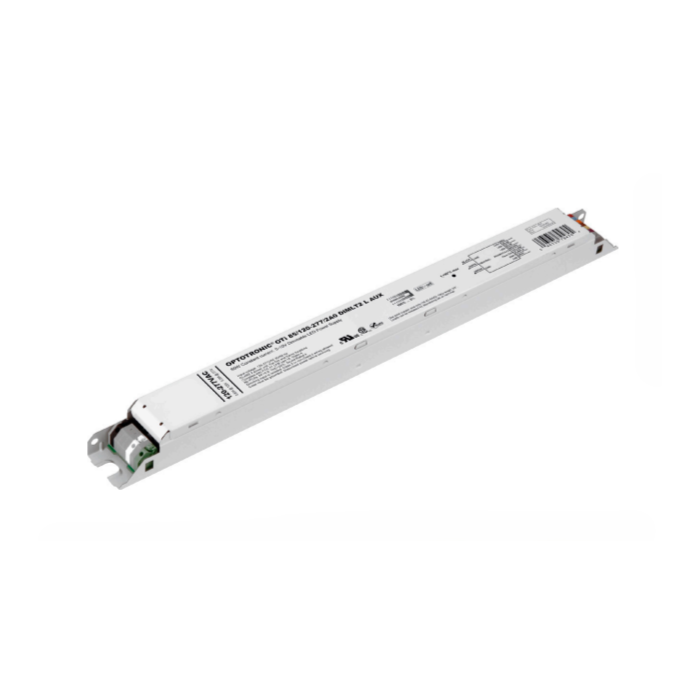

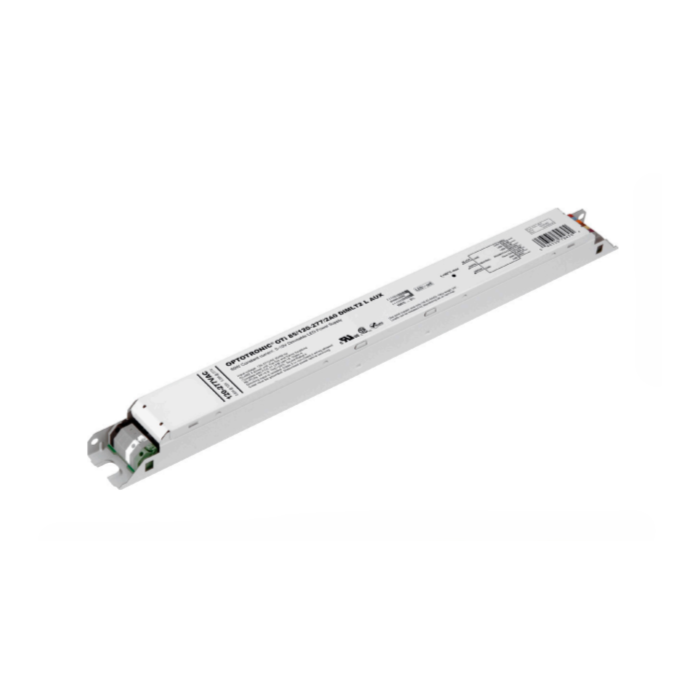

57453 / 2743X4 eldoLED OTi 20/120-277/700 DIM-1 L AUX OPTOTRONIC Indoor Linear 20w Constant Current LED Driver
Special Price
$34.50
Regular Price
$43.13
SKU
16680
OPTOTRONIC Indoor Linear Programmable Constant Current Dimmable LED Driver: 20 Total Watts, 150-700mA (Default 350mA) Output Current, 55 VDC Output Voltage, 120-277 VAC Input Voltage, Class 2, 0-10v Dimming Control, 1%-100% Dimming Range
57453 / 2743X4 eldoLED OTi 20/120-277/700 DIM-1 L AUX OPTOTRONIC Indoor Linear 20w Constant Current LED Driver
- 150-700mA (Default 350mA) Programmable LED Driver
- OEM Programmable with 1mA resolution to perfectly match LED load and maximize performance
- Integrated OEM programmable features include: Constant lumen maintenance, End-of-life indication, LED thermal protection, Soft start
- Specification grade dimming down to true 1% or 10% on 0-10V dimmers.
- UL Class 2 output for safe operation
| Life (hrs) | 50,000 |
|---|---|
| Order Code | 2743X4 |
| Input Volts | 120-277 VAC |
| Output Current | 150-700mA (Default 350mA) |
| Watts | 20 |
| Brand | eldoLED |
| LED Type | Constant Current |
| Certifications | UL, RoHS, UL damp & dry |
| Class | Class 2 |
| Dimmable | Yes |
| Dimming Type | 0-10v |
| Mfg # | 57453 |

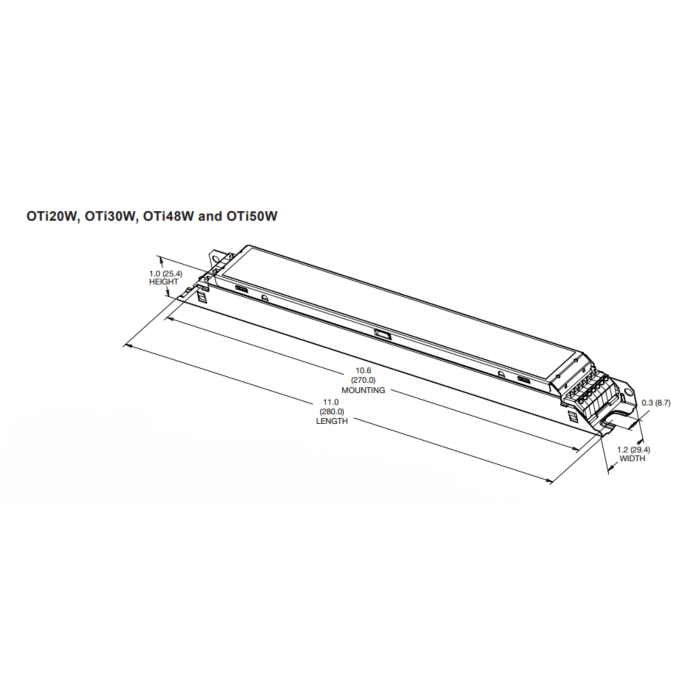

| Dimensions | 11.02 in. x 1.15 in. x 1 in. |
| Product Data Sheet | |
| Warranty | Manufacturers 5 Year |
| UPC | 4062172018784 |
