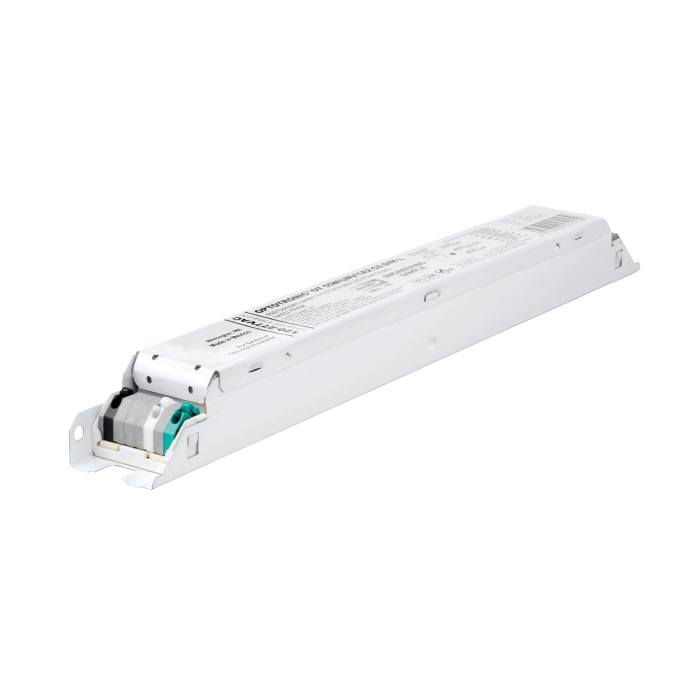

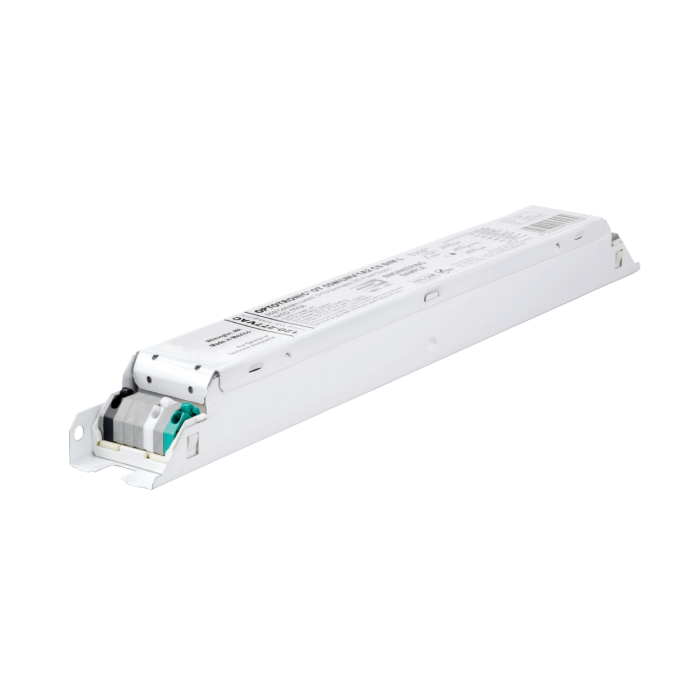

57440 / 2743WP eldoLED OT50WUNV1A4CSDIML OPTOTRONIC Indoor Linear 50w Constant Current LED Driver
Special Price
$23.90
Regular Price
$29.88
SKU
16679
OPTOTRONIC Indoor Linear Switchable Constant Current Dimmable LED Driver: 50 Total Watts, 1200mA/1300mA/1400mA Output Current, 36 VDC Output Voltage, 120-277 VAC Input Voltage, Class 2, 0-10v Dimming Control, 10%-100% Dimming Range
57440 / 2743WP eldoLED OT50WUNV1A4CSDIML OPTOTRONIC Indoor Linear 50w Constant Current LED Driver
- 1200mA/1300mA/1400mA Switchable LED Driver
- Wide coverage of operating currents and power levels
- Multiple output currents selectable by shorting designated output pins
- Specification grade dimming down to 10% on 0-10V dimmers
- UL Class 2 output
| Life (hrs) | 50,000 |
|---|---|
| Order Code | 2743WP |
| Input Volts | 120-277 VAC |
| Output Current | 1200mA/1300mA/1400mA |
| Max Output Voltage | 36 |
| Watts | 50 |
| Brand | eldoLED |
| LED Type | Constant Current |
| Certifications | UL, RoHS, UL damp & dry |
| Class | Class 2 |
| Dimmable | Yes |
| Dimming Type | 0-10v |
| Mfg # | 57440 |

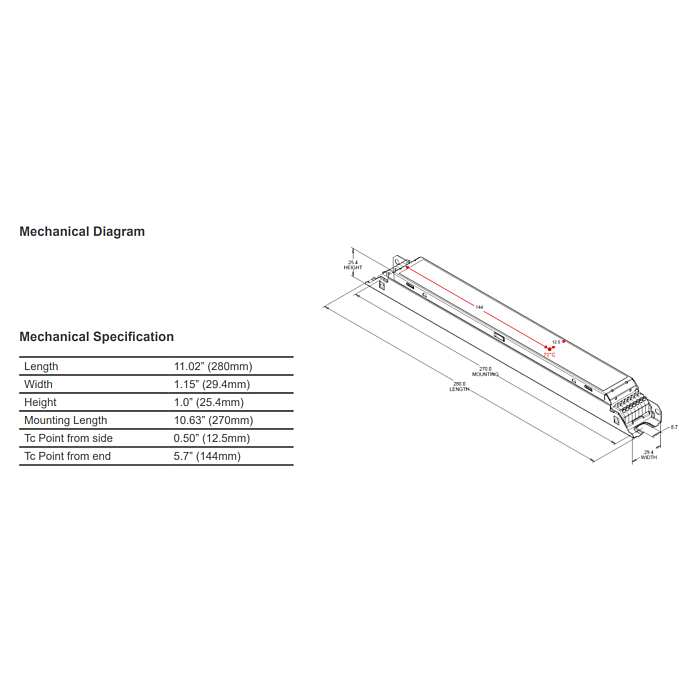

| Dimensions | 11.02 in. x 1.15 in. x 1 in. |
| Product Data Sheet | |
| Warranty | Manufacturers 5 Year |
| UPC | 4052899530577 |
