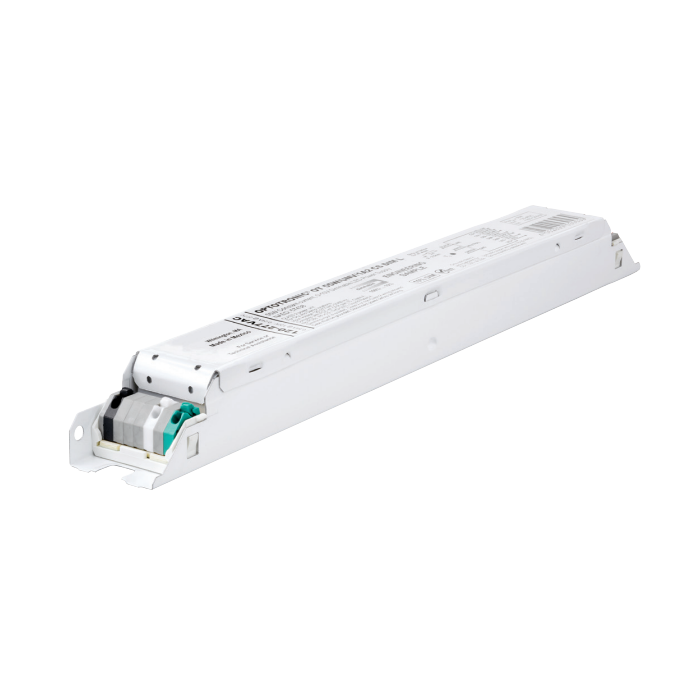

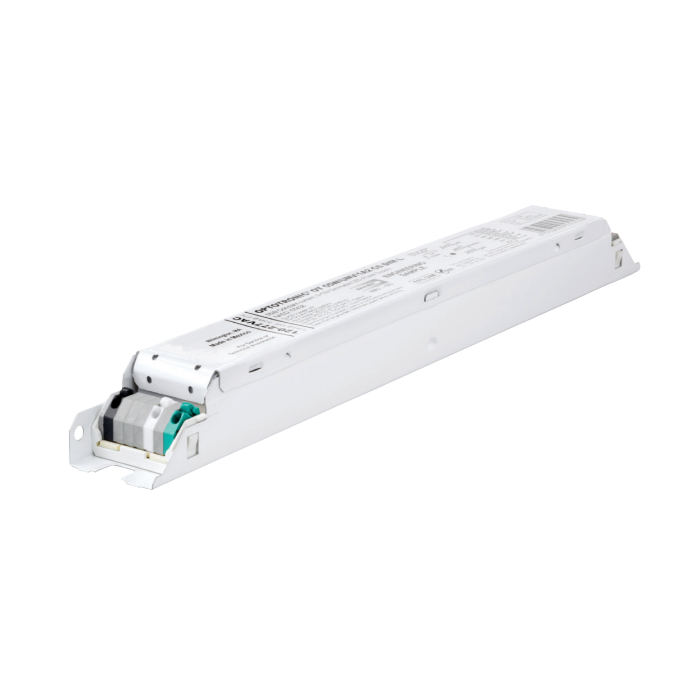

57437 / 2743WL eldoLED OT55WUNV1A2CSL OPTOTRONIC 55w Constant Current LED Driver - *DISCONTINUED*

Mfg # 57437 Item # 16676 Order Code 2743WL

OPTOTRONIC Indoor Linear Switchable Constant Current Non-Dimmable LED Driver: 55 Total Watts, 800mA/1000mA/1200mA Output Current, 50 VDC Output Voltage, 120-277 VAC Input Voltage, Class 2, Not Applicable Dimming Control, Not Applicable Dimming Range

$27.44
$21.95

eldoLED LED Drivers

57437 / 2743WL eldoLED OT55WUNV1A2CSL OPTOTRONIC Indoor Linear 55w Constant Current LED Driver

  • 800mA/1000mA/1200mA Switchable LED Driver
  • Wide coverage of operating currents and power levels
  • Multiple output currents selectable by shorting designated output pins
  • Specification grade dimming down to 10% on 0-10V dimmers
  • UL Class 2 output
Life (hrs) 50,000
Order Code 2743WL
Input Volts 120-277 VAC
Output Current 800mA/1000mA/1200mA
Max Output Voltage 50
Watts 55
Brand eldoLED
LED Type Constant Current
Certifications UL, RoHS, FCC Title 47 Part 15 Class A, UL damp & dry
Class Class 2
Dimmable No
Dimming Type Not Applicable
Mfg # 57437

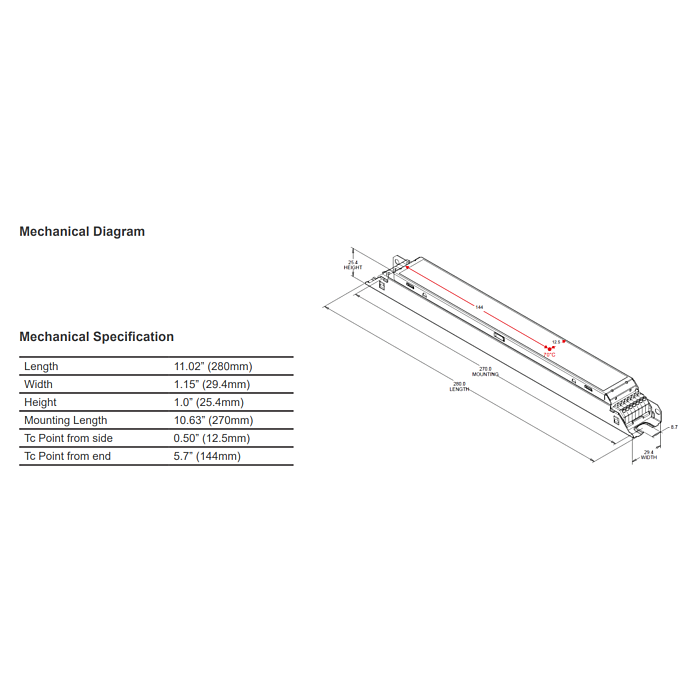

Dimensions 11.02 in. x 1.15 in. x 1 in.
Product Data Sheet
Warranty Manufacturers 5 Year
UPC 4052899530515
