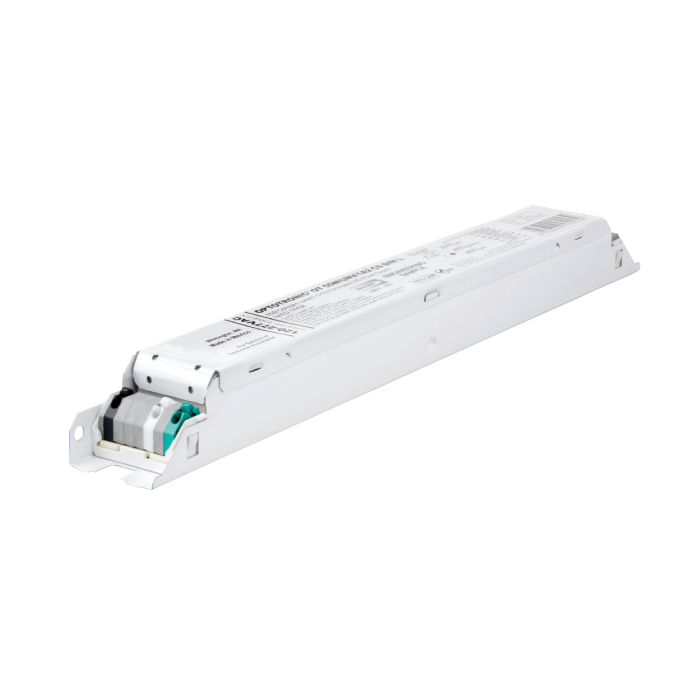

57436 / 2743WK eldoLED OT35WUNV0A7CSDIML OPTOTRONIC 35w Constant Current LED Driver - *DISCONTINUED*

Mfg # 57436 Item # 16675 Order Code 2743WK

OPTOTRONIC Indoor Linear Switchable Constant Current Dimmable LED Driver: 35 Total Watts, 350mA/625mA/750mA Output Current, 50 VDC Output Voltage, 120-277 VAC Input Voltage, Class 2, 0-10v Dimming Control, 10%-100% Dimming Range

$26.55
$21.24

eldoLED LED Drivers

57436 / 2743WK eldoLED OT35WUNV0A7CSDIML OPTOTRONIC Indoor Linear 35w Constant Current LED Driver

  • 350mA/625mA/750mA Switchable LED Driver
  • Wide coverage of operating currents and power levels

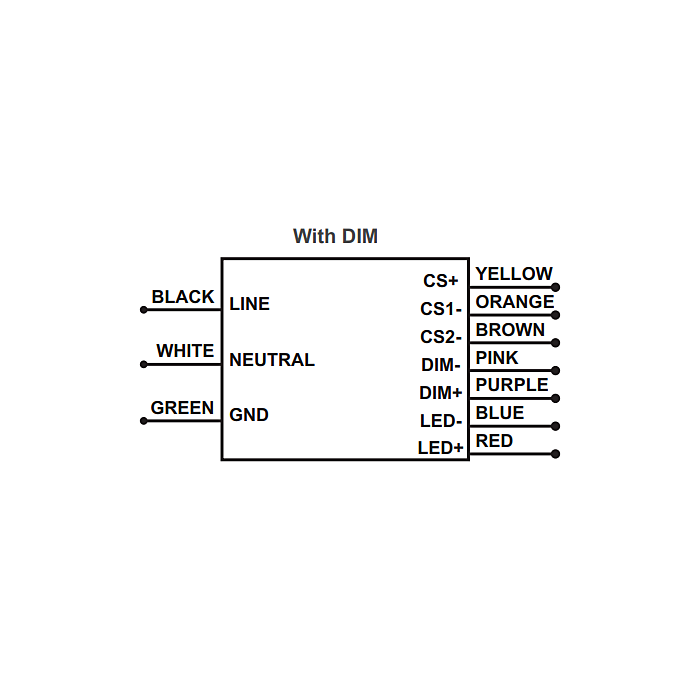

  • Multiple output currents selectable by shorting designated output pins
  • Specification grade dimming down to 10% on 0-10V dimmers
  • UL Class 2 output
Life (hrs) 50,000
Order Code 2743WK
Input Volts 120-277 VAC
Output Current 350mA/625mA/750mA
Max Output Voltage 50
Watts 35
Brand eldoLED
LED Type Constant Current
Certifications UL, RoHS, FCC Title 47 Part 15 Class A, UL damp & dry
Class Class 2
Dimmable Yes
Dimming Type 0-10v
Mfg # 57436

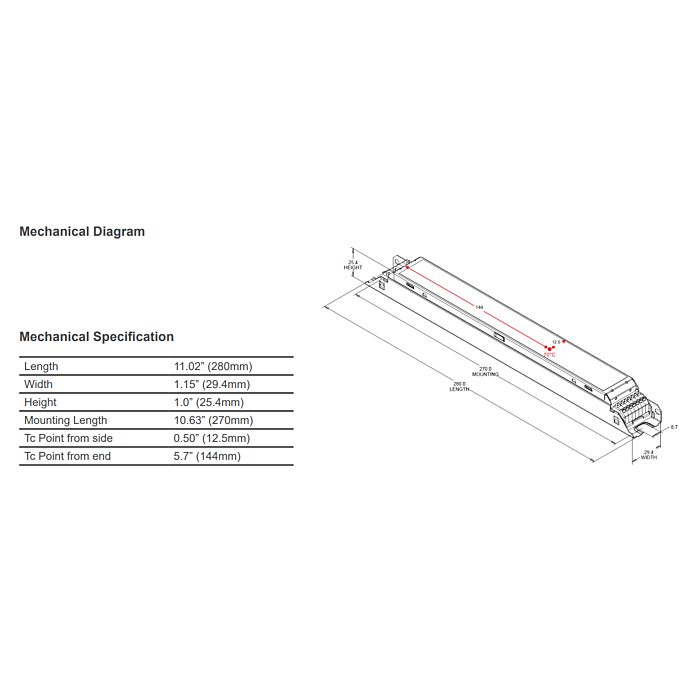

Dimensions 11.02 in. x 1.15 in. x 1 in.
Product Data Sheet
Warranty Manufacturers 5 Year
UPC 4052899530492
