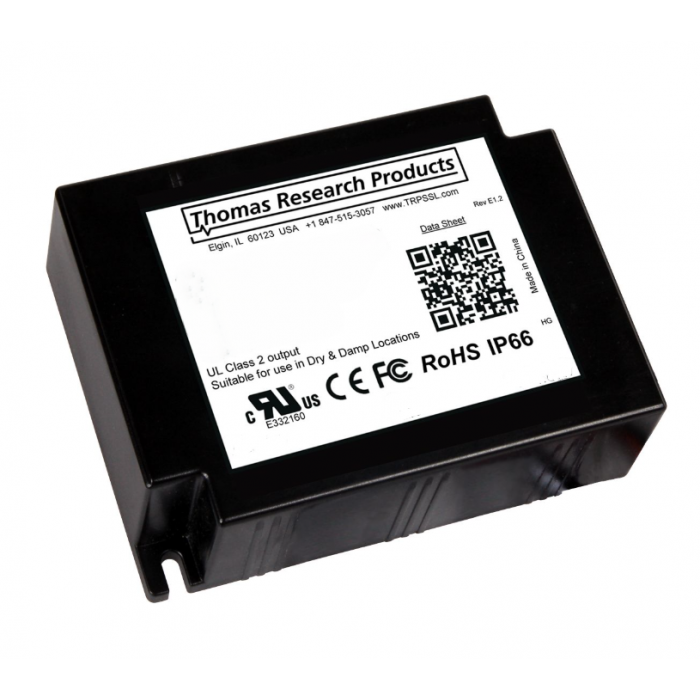

LED40W-024-C1300-D Thomas Research Products 40W Constant Current Dimmable LED Driver
Special Price
$11.07
Regular Price
$13.84
SKU
17199
LED-40W CC Series Fixed Constant Current Dimmable LED Driver: 40 Total Watts, 1300 mA Output Current, 24 VDC Output Voltage, 120-277 VAC Input Voltage, Class 2, 0-10V Dimming Control, 1%-100% Dimming Range
LED40W-024-C1300-D Thomas Research Products 40W Constant Current Dimmable LED Driver
- Total Power: 40 Watts
- Input Voltage: 120-277 Vac Nom.
- UL Dry & Damp Location Rated
- IP66
- High Power Factor
- UL Type HL Rated for Hazardous Locations
- Constant Current, Dimming with Isolation
- Black Magic Thermal Advantage™ Plastic Housing
- 0-10V Linear Dimming 1% to 100%
- Dims to Zero @ ≤1.0V, Standby Power ≤0.5W
| Life (hrs) | 50,000 |
|---|---|
| Order Code | LED40W-024-C1300-D |
| Input Volts | 120-277 VAC |
| Output Current | 1300 mA |
| Max Output Voltage | 24 |
| Watts | 40 |
| Brand | Thomas Research Products |
| LED Type | Constant Current |
| Certifications | IP66, UL 8750, RoHS, Type HL, UL damp & dry, EN61000-3-2, EN61000-3-3, CSA 22.2, CE EN61347, EN6100-4-5 |
| Class | Class 2 |
| Dimmable | Yes |
| Mfg # | LED40W-024-C1300-D |
| Dimensions | 3.74 in. x 2.76 in. x 1.26 in. |
| Product Data Sheet | |
| Warranty | Manufacturers 5 Year |
