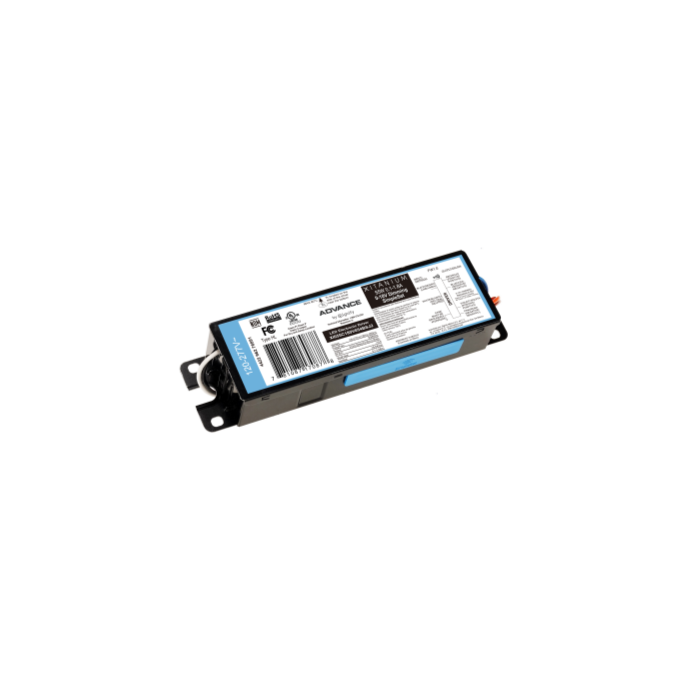

XI055C180V054BSJ2 Advance Xitanium 55w Constant Current LED Driver
Special Price
$78.44
Regular Price
$98.05
SKU
16175
Xitanium Programmable Constant Current Dimmable LED Driver: 75 Total Watts, 0.1 - 2.0A Output Current, 48 VDC Output Voltage, 120-277 VAC Input Voltage, Class 2, 0-10v, Analog Dimming Control, 1%-100% Dimming Range
XI075C200V048BPT1 Advance Xitanium 75w Constant Current LED Driver
- High efficiency (>86%)
- 1% min. dim level, 0-10V Dimming
- UL Class P
| Life (hrs) | 50,000 |
|---|---|
| Order Code | 929002766013 |
| Input Volts | 120-277 VAC |
| Output Current | 0.1-1.8 |
| Max Output Voltage | 54 |
| Watts | 55 |
| Brand | Advance |
| LED Type | Constant Current |
| Certifications | RoHS, NOM, UL Listed for US & Canada, UL Class P, Type HL, FCC Title 47 Part 15 Class A, UL damp & dry |
| Class | Class 2 |
| Dimmable | Yes |
| Dimming Type | 0-10v |
| Mfg # | 929002766013 |
| Dimensions | 6.61 in. x 1.78 in.x 1.11 in. |
| Product Data Sheet | |
| Warranty | Manufacturers 5 Year |
| UPC | 781087170878 |
