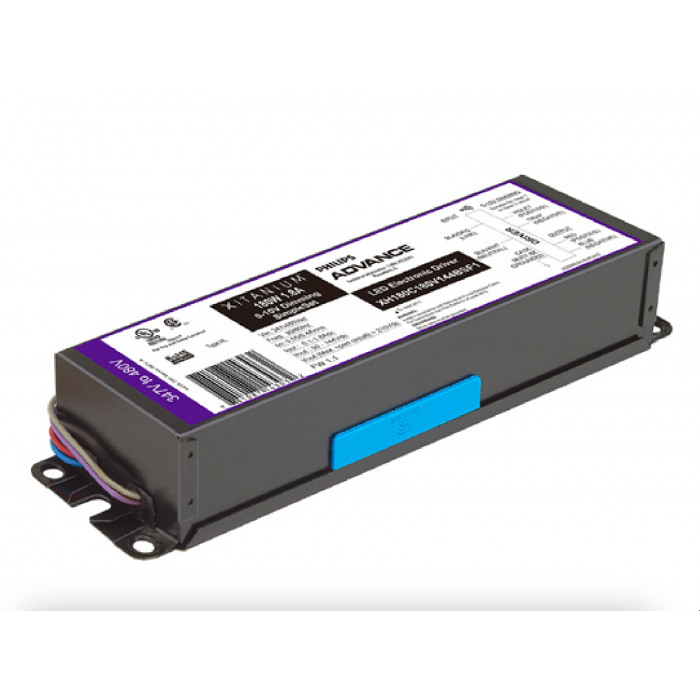

XH180C125V200BSF2 Advance Xitanium 180w Constant Current LED Driver
Special Price
$69.95
Regular Price
$87.44
SKU
16117
CertaDrive X Switchable Constant Current Dimmable LED Driver: 65 Total Watts, 1.225 - 1.35A Output Current, 48 VDC Output Voltage, 347-480 VAC Input Voltage, Class 2, 0-10v, Analog Dimming Control, 10%-100% Dimming Range
CI065C135V048CDX1 Advance CertaDrive X 65w Constant Current LED Driver
- 50,000+ hour lifetime
- Excellent thermal performance
- 0-10V Dimming
| Life (hrs) | 50,000 |
|---|---|
| Order Code | 929001783113 |
| Input Volts | 347-480 VAC |
| Output Current | 0.1 -1.25 |
| Max Output Voltage | 210 |
| Watts | 180 |
| Brand | Advance |
| LED Type | Constant Current |
| Certifications | Class P, cUL, Damp Rated, UL 8750, NOM, Dry Location, Type HL, FCC Title 47 Part 15 Class A |
| Class | Class 2 |
| Dimmable | Yes |
| Dimming Type | 0-10v, Analog |
| Mfg # | 929001783113 |
| Dimensions | 9.47 in. x 2.31 in.x 1.48 in. |
| Product Data Sheet | |
| Warranty | Manufacturers 5 Year |
| UPC | 781087162583 |
