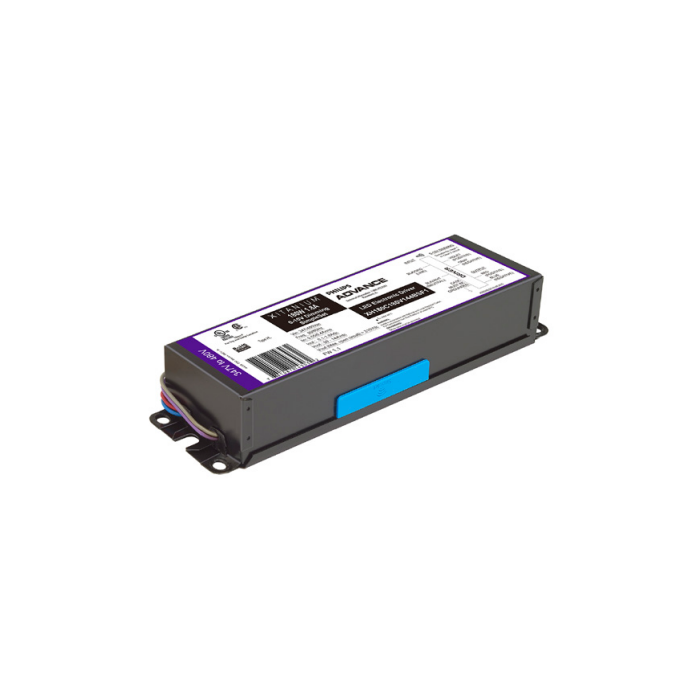

XH180C090V285BSF2 Advance Xitanium 180w Constant Current LED Driver
Special Price
$70.56
Regular Price
$88.20
SKU
16183
Xitanium Programmable Constant Current Dimmable LED Driver: 320 Total Watts, 0.1-1.25A Output Current, 425 VDC Output Voltage, 120-277 VAC Input Voltage, Class 2, 0-10v Dimming Control, 10%-100% Dimming Range
XI320C125V425PSF1 Advance Xitanium 320w Constant Current LED Driver
- 50,000+ hour lifetime
- Excellent thermal performance
- 0-10V dimming suitable for UL Class 1 and Class 2 wiring
| Life (hrs) | 50,000 |
|---|---|
| Order Code | 929001783013 |
| Input Volts | 347-480 VAC |
| Output Current | 0.1 - 0.9 |
| Max Output Voltage | 285 |
| Watts | 180 |
| Brand | Advance |
| LED Type | Constant Current |
| Certifications | cUL, UL 8750, Type HL, FCC Title 47 Part 15 Class A, UL damp & dry |
| Class | Class 2 |
| Dimmable | Yes |
| Dimming Type | 0-10v, Analog |
| Mfg # | 929001783013 |
| Dimensions | 9.47 in. x 2.31 in.x 1.69 in. |
| Product Data Sheet | |
| Warranty | Manufacturers 5 Year |
| UPC | 781087162576 |
