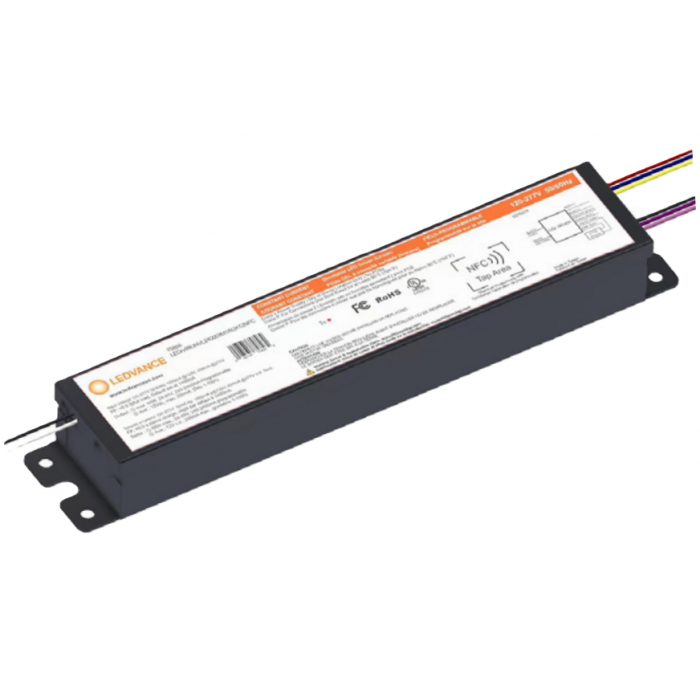

75858 LEDVANCE LEDrv88UNVL2400DIM1AUX12NFC tapTronic Linear 88w Constant Current LED Driver
Special Price
$62.91
Regular Price
$78.63
SKU
16657
tapTronic Linear Programmable Constant Current Dimmable LED Driver: 88 Total Watts, 240-2400mA (Default 1400mA) Output Current, 48 VDC Output Voltage, 120-277V Input Voltage, Class 2, 0-10v Dimming Control, 1%-100% Dimming Range
75858 LEDVANCE LEDrv88UNVL2400DIM1AUX12NFC tapTronic Linear 88w Constant Current LED Driver
- 240-2400mA (Default 1400mA) Field-programmable via free app
- Programming does not require driver to be powered up
- Quick and easy output customization: Current, Dim to off – dim range %, Constant lumen output, Soft start, End of life, Thermal protection
- Compliant with CA T-24 requirement for flicker and startup time
- Replaces Older Osram Models: 57425, 57426, 57424, 57420, 57421, 57422, 79806
| Order Code | 75858 |
|---|---|
| Input Volts | 120-277V |
| Output Current | 240-2400mA (Default 1400mA) |
| Max Output Voltage | 48 |
| Watts | 88 |
| Brand | LEDVANCE LLC. |
| LED Type | Constant Current |
| Certifications | cULus, FCC, Title24, RoHS, FCC Title 47 Part 15 Class A, UL damp & dry |
| Class | Class 2 |
| Dimmable | Yes |
| Dimming Type | 0-10v |
| Mfg # | 75858 |
| Dimensions | 9.5 in. x 1.8 in. x 1.2 in. |
| Product Data Sheet | |
| Warranty | Manufacturers 5 Year |
| UPC | 046135758584 |
