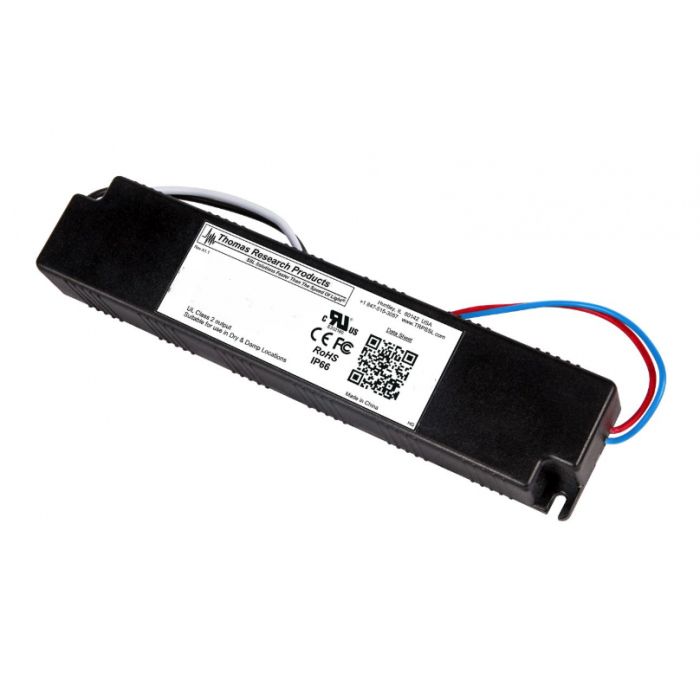

LED50W-072-C0530 Thomas Research Products 50W Constant Current LED Driver
Special Price
$19.64
Regular Price
$24.55
SKU
17209
LED-50W CC Series Fixed Constant Current Non-Dimmable LED Driver: 50 Total Watts, 530 mA Output Current, 72 VDC Output Voltage, 120-277 VAC Input Voltage, Class 2
LED50W-072-C0530 Thomas Research Products 50W Constant Current LED Driver
- Total Power: 50 Watts
- Input Voltage: 120-277 Vac Nom.
- UL Dry & Damp Location Rated
- IP66
- High Power Factor
- Constant Current, Dimming with Isolation
- Black Magic Thermal Advantage™ Plastic Housing
| Life (hrs) | 45,000 |
|---|---|
| Order Code | LED50W-072-C0530 |
| Input Volts | 120-277 VAC |
| Output Current | 530 mA |
| Max Output Voltage | 72 |
| Watts | 50 |
| Brand | Thomas Research Products |
| LED Type | Constant Current |
| Certifications | IP66, UL 8750, RoHS, UL damp & dry, EN61000-3-2, EN61000-3-3, EN55015 Conducted emission Test & Radiated emission Test, CSA 22.2, CE EN61347, EN6100-4-5 |
| Class | Class 2 |
| Dimmable | No |
| Dimming Type | Not Applicable |
| Mfg # | LED50W-072-C0530 |
| Dimensions | 7.64 in. x 1.69 in. x 0.98 in. |
| Product Data Sheet | |
| Warranty | Manufacturers 5 Year |
