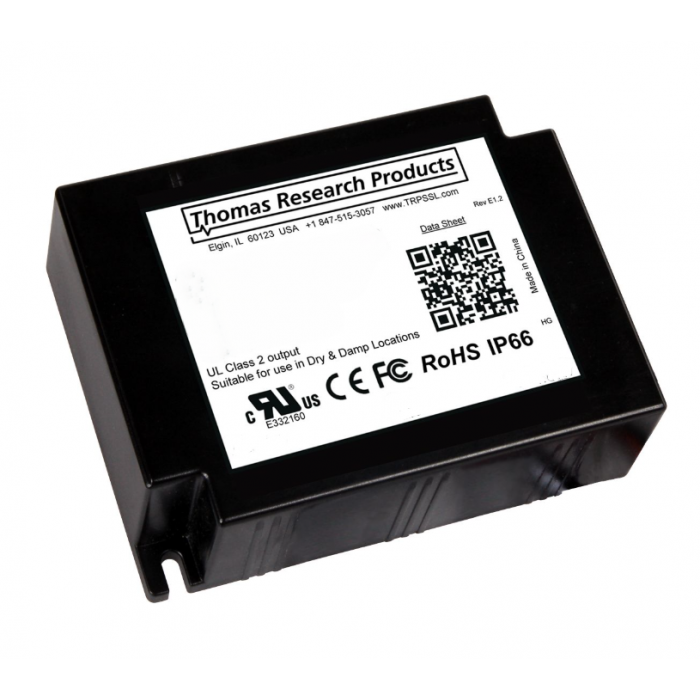

LED40W120-036-C1100-LT Thomas Research Products 40W Constant Current Dimmable LED Driver
Special Price
$48.27
Regular Price
$60.34
SKU
17208
LED40W-LT Series Fixed Constant Current Dimmable LED Driver: 40 Total Watts, 1100 mA Output Current, 36 VDC Output Voltage, 120V Input Voltage, Class 2, ELV Dimming Control, 1%-100% Dimming Range
LED40W120-036-C1100-LT Thomas Research Products 40W Constant Current Dimmable LED Driver
- Total Power: 40 Watts
- 0%-100% (depends on dimmer control
- Both ELV & Inc in the same unit
- UL Dry & Damp Location Rated
- IP66 & NEMA4
- High Power Factor
- Black Magic Thermal Advantage™ Plastic Housing
- Compatible with Triac (leading edge) and ELV (electronic low voltage; trailing edge) dimmer controls
- Use a dimmer that closely matches the load, just slightly larger. (EX: For best performance, use a 150W rated dimmer for 100W total LED load instead of 600W dimmer.)
| Life (hrs) | 58,000 |
|---|---|
| Order Code | LED40W120-036-C1100-LT |
| Input Volts | 120V |
| Output Current | 1100 mA |
| Max Output Voltage | 36 |
| Watts | 40 |
| Brand | Thomas Research Products |
| LED Type | Constant Current |
| Certifications | IP66, UL 8750, RoHS, UL damp & dry, EN61000-3-2, EN61000-3-3, CSA 22.2, CE EN61347, EN6100-4-5, NEMA4 |
| Class | Class 2 |
| Dimmable | Yes |
| Dimming Type | ELV |
| Mfg # | LED40W120-036-C1100-LT |
| Dimensions | 3.78 in. x 2.8 in. x 1.26 in. |
| Product Data Sheet | |
| Warranty | Manufacturers 5 Year |
