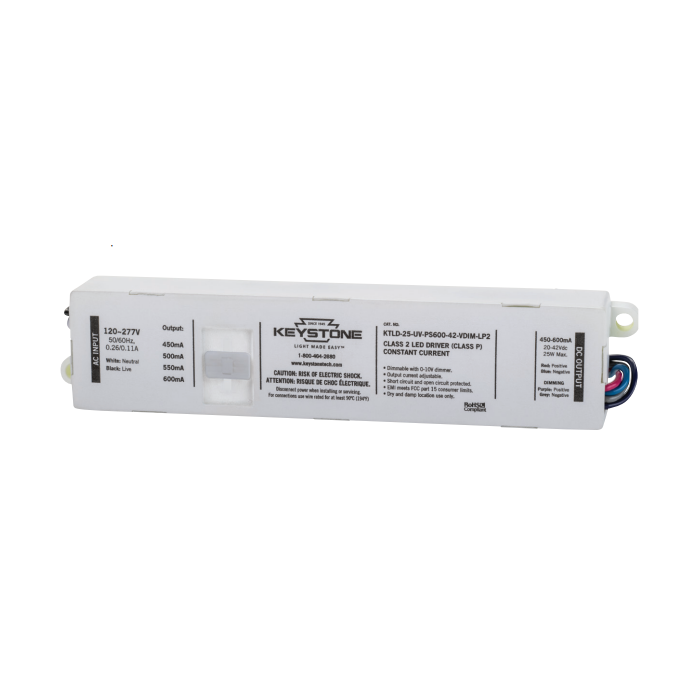

KTLD-25-UV-PS600-42-VDIM-LP2 Keystone Power Selectable 25w Constant Current LED Driver
Special Price
$19.80
Regular Price
$24.75
SKU
17034
Power Selectable Switchable Constant Current Dimmable LED Driver: 25 Total Watts, 450, 500, 550 or 600mA Output Current, 42 VDC Output Voltage, 120-277 VAC Input Voltage, Class 2, 0-10v Dimming Control, 10%-100% Dimming Range
KTLD-25-UV-PS600-42-VDIM-LP2 Keystone Power Selectable 25w Constant Current LED Driver
- Over voltage protection
- Over current protection
- Short circuit protection
- 5-year warranty
| Life (hrs) | 50,000 |
|---|---|
| Order Code | SRG-81 |
| Input Volts | 120-277 VAC |
| Output Current | 450, 500, 550 or 600mA |
| Max Output Voltage | 42 |
| Watts | 25 |
| Brand | Keystone |
| LED Type | Constant Current |
| Certifications | Class P, cULus, FCC, RoHS, EN61000-3-2 Harmonic Current Emissions Class C, FCC Part 15 Class B, CE EN61347-1, CE EN61347-2-13 |
| Class | Class 2 |
| Dimmable | Yes |
| Dimming Type | 0-10v |
| Mfg # | KTLD-25-UV-PS600-42-VDIM-LP2 |
| Dimensions | 6.34 in. x 1.34 in. x 0.95 in. |
| Product Data Sheet | |
| Warranty | Manufacturer's 10 year |
| UPC | 843654128764 |
