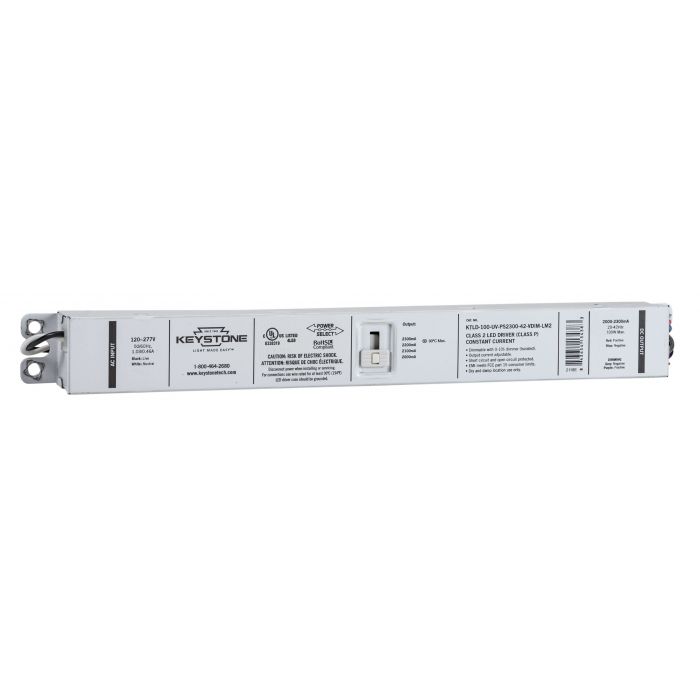

KTLD-100-UV-PS2300-42-VDIM-LM2 Keystone PowerSelect 100w Constant Current LED Driver
Special Price
$29.12
Regular Price
$36.40
SKU
17021
PowerSelect Switchable Constant Current Dimmable LED Driver: 100 Total Watts, 2000, 2100, 2200 or 2300mA Output Current, 42 VDC Output Voltage, 120-277 VAC Input Voltage, Class 2, 0-10v Dimming Control, 10%-100% Dimming Range
KTLD-100-UV-PS2300-42-VDIM-LM2 Keystone PowerSelect 100w Constant Current LED Driver
- Over Voltage Protection
- Over Current Protection
- Short Circuit Protection
- UL/cUL: UL 8750, Class P, Type HL, UL1310 Class 2
- CE: EN61347-1, EN61347-2-13
- FCC, 47CFR Part 15: ANSI C63.4:2009 Class B (Consumer Limit)
- Sound Rating: Class A Sound Rating (per Energy Star V1.0)
- EN61000-3-2: Harmonic Current Emissions Class C
- 10-year warranty
| Life (hrs) | 50,000 |
|---|---|
| Order Code | XFZ-81 |
| Input Volts | 120-277 VAC |
| Output Current | 2000, 2100, 2200 or 2300mA |
| Max Output Voltage | 42 |
| Watts | 100 |
| Brand | Keystone |
| LED Type | Constant Current |
| Certifications | Class P, cULus, FCC, Sound Rated: A, UL 8750, RoHS, EN61000-3-2 Harmonic Current Emissions Class C, FCC Part 15 Class B, CE EN61347-1, CE EN61347-2-13, UL cUL Class P, UL1310 Class 2, Power Select, UL cUL Type HL |
| Class | Class 2 |
| Dimmable | Yes |
| Dimming Type | 0-10v |
| Mfg # | KTLD-100-UV-PS2300-42-VDIM-LM2 |
| Dimensions | 11.4 in. x 1.23 in. x 1.15 in. |
| Product Data Sheet | |
| Warranty | Manufacturer's 10 year |
| UPC | 843654134383 |
