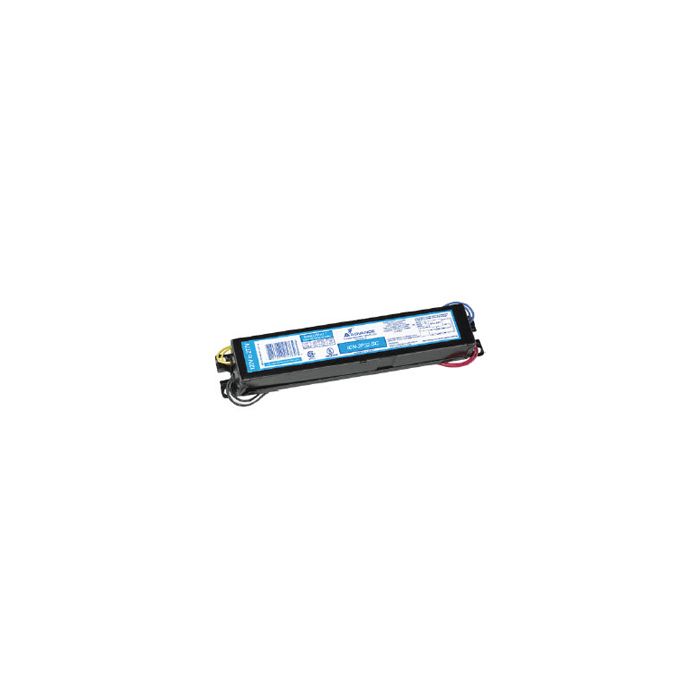

Advance Centium ICN-4P32-SC T8 Electronic Fluorescent Ballast

Special Price $13.75 Regular Price $16.80

SKU

1713

Advance Centium Electronic Fluorescent Ballast - Lamps: (3/4) F17T8, (3/4) F25T8, (3/4) F32T8, (3/4) F32T8/ES (25W), (3/4) F32T8/ES (28W), (3/4) F32T8 (30W), (3) F40T8 -Input:120-277V -Starting: Instant Start

DISCONTINUED by Philips Advance. SEE the new replacement version - Advance ICN-4P32-N

The ICN-4P32-N is the exact same ballast as the ICN-4P32-SC. It runs the same lamps and has the same wiring and voltage. The only difference is the -N version is slightly narrower than the -SC version.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Advance Electronic Fluorescent Centium® T8 Ballast

High Power Factor

Operates from 60 Hz input source of 120-277V with sustained variations of +/- 10% (voltage and frequency).

Volts: 120-277V

Instant Start Method

Min Starting Temp: 0ºF , -18ºC

Case Temp: 70°C

<10% THD

More Information

More Information
Order Code	ICN-4P32-SC
Input Volts	120-277V
Brand	Advance Centium
Mfg #	ICN4P32N
# of Lamps	3 Lamps, 4 Lamps
Product Data Sheet	EL-2030-R07a
Certifications	CSA, UL
Equivalents	GE GE432MAX-N, GE432MAX-N/CTR, GE432MAX-N/CTR, GE432MAX-N-DIY, GE432MAX-N/ULTRA, GE432MV-N, GE-432MV-N-DIY, GE432MVN-DIY, GE-432-MV-N, GE-432-120-N, GE-432-277-N Sylvania QTP4x32T8/UNVISN-SC, QT4X31/220IS, QT4X32/277IS, QT4X32T8/120ISN-SC, QT4X32T8/277ISN-SC, QTP4X32T8/120ISN-SC, QTP4X32T8/277ISN-SC, QTP4X32T8/UNVISN-SC, M4-IN-T8-A-120, M4-IN-T8-A-277 Universal B432IUNV-D, B432IUNVHP-A, B432I120RH-A, B432I277RH-A, B432I120HP, B432I277HP Advance ICN-4P32-SC, RCN-4P32, RCN-4P32-SC, REL-4P32-SC, VCN-4P32-SC, VEL-4P32-SC
Start Method	Instant Start
Starting Temperature	0ºF, -18ºC
Lamps	(3/4) F17T8, (3/4) F25T8, (3/4) F32T8, (3/4) F32T8/ES (25W), (3/4) F32T8/ES (28W), (3/4) F32T8 (30W), (3) F40T8
Dimensions	9.5”(L) x 1.7”(W) x 1.18”(H)
Case Size	10
Warranty	5 Year Advance Philips Limited Warranty
UPC	781087091524
